How to Configure MikroTik Firewall for Home Network 2026

Last Updated: October 12, 2026

Understanding MikroTik Firewall Basics for Home Networks

A mikrotik firewall home network protection system is a set of rules controlling which traffic enters, exits, and passes through your router. RouterOS, the operating system on MikroTik routers, includes built-in firewall capabilities that filter packets by source, destination, protocol, and connection state (Firewall - RouterOS).

The firewall operates across three chains: input (traffic destined for the router), forward (traffic passing through to other devices), and output (traffic originating from the router) (Firewall - RouterOS). Rules are evaluated in order, and the first match wins.

What RouterOS firewall does and doesn't protect

RouterOS firewall rules protect against unauthorized access to your router and block unwanted traffic from reaching your home network devices.

What it doesn't do: it won't stop compromised devices sending data outbound, can't filter encrypted traffic contents, and won't replace antivirus or endpoint security. Think of it as a gatekeeper at your network's edge, not a full security suite.

When you need additional security layers

A MikroTik firewall handles perimeter defense, but layered security helps. If you run a home server, host internet-accessible services, or manage multiple user accounts, add DNS filtering, VPN access controls, and possibly intrusion detection.

For basic protection, RouterOS firewall rules alone are often sufficient. Add DNS-based blocking via RouterOS's built-in DNS server, and consider a VPN for remote family access.

RouterOS Default Firewall Configuration: What's Already There

A new MikroTik router running RouterOS ships with basic firewall rules in the filter table.

The default forward chain typically accepts all traffic, so your devices can reach the internet but external traffic cannot initiate inbound connections, sensible for home use, though it leaves room for hardening.

Review the defaults under IP > Firewall > Filter Rules in WinBox or via terminal, and document them before making changes. This baseline makes troubleshooting and rollback far easier.

Setting Up WAN and LAN Interfaces for Home Networks

Before firewall rules matter, your router must know which interfaces are WAN (internet-facing) and which are LAN (internal). This distinction is fundamental to how the firewall evaluates traffic.

Creating WAN and LAN interface lists

Interface lists group physical ports into logical categories. Create a WAN list for the interface connected to your modem (usually ether1), and a LAN list for all internal interfaces (ether2-ether5 on most models, plus the wireless interface if present).

Navigate to IP > Firewall > Interface Lists, add a list named "WAN" and assign your internet-facing interface, then create "LAN" and assign your internal interfaces. Rules referencing "WAN" or "LAN" keep working even if you later swap ports.

DHCP server and gateway configuration

Your DHCP server assigns IP addresses to home network devices. Configure it on a LAN interface (typically ether2 or the bridge containing your LAN ports) and set the gateway IP to your router's LAN IP address, telling clients where to send internet-bound traffic.

The gateway setting is critical: a misconfigured gateway breaks internet access even if firewall rules are perfect. Verify settings under IP > DHCP Server > Servers and confirm the gateway IP matches your router's LAN interface address.

MikroTik Firewall Rules for Home Network: Input and Forward Chains

Input and forward chains are where you explicitly allow or deny traffic. Rule order matters: RouterOS evaluates top to bottom, and the first matching rule wins.

Input chain rules: protecting the router itself

Input chain rules protect the router from direct attacks. Accept traffic from your LAN (devices you control), then drop everything else by default.

A basic input chain for home networks looks like this:

1. Accept established and related connections
2. Accept traffic from LAN interface
3. Drop invalid packets
4. Drop all other traffic (implicit or explicit)

The first rule allows responses to outbound connections your router initiated (DNS queries, NTP time sync). The second trusts your LAN to manage the router. The third stops malformed packets.

Forward chain rules: protecting devices on your network

Forward chain rules control traffic passing through the router to your home network devices, protecting them from external attacks while allowing outbound access.

A basic forward chain setup includes:

1. Accept established and related connections
2. Accept traffic from LAN to WAN
3. Drop invalid packets
4. Drop all other traffic

This lets your devices initiate outbound connections (browsing, email, streaming) while blocking unsolicited inbound traffic, so external attackers cannot start new connections to your devices.

Connection state handling for established, related, and invalid traffic

RouterOS tracks connection state, remembering which connections your router initiated or allowed, the backbone of stateful firewalling that lets your home network work without manually allowing every response packet (Connection tracking - RouterOS).

Established connections belong to an existing connection your router has seen. Related connections relate to an existing connection (like FTP data transfers on a separate port).

The rule "accept connection-state=established,related" appears in nearly every proper home firewall configuration, allowing your devices to receive responses without a rule for every single response.

MikroTik Firewall Filter Rules Examples: Practical Configurations

Real-world firewall rules combine the principles above into working configurations. Here are practical examples to adapt to your home network.

NAT and masquerade rules for outbound traffic

NAT (Network Address Translation) hides your internal devices behind your router's IP address.

A basic masquerade rule looks like this in RouterOS:

Chain: srcnat Action: masquerade Out. Interface: WAN

This single rule lets all internal devices reach the internet. Without it, external hosts receive packets with internal IP addresses (10.0.0.x, 192.168.x.x) they cannot route back.

Place masquerade rules in the srcnat chain, not the filter table, the firewall checks NAT rules before filter rules.

Blocking invalid packets and DDoS mitigation

Invalid packets are malformed, out-of-state, or otherwise suspicious, and dropping them is a free security win. Add a forward chain rule:

Chain: forward Action: drop Connection-state: invalid

This alone stops many basic attacks, attackers often send packets with invalid flags (like SYN-ACK without a prior SYN) to probe your network.

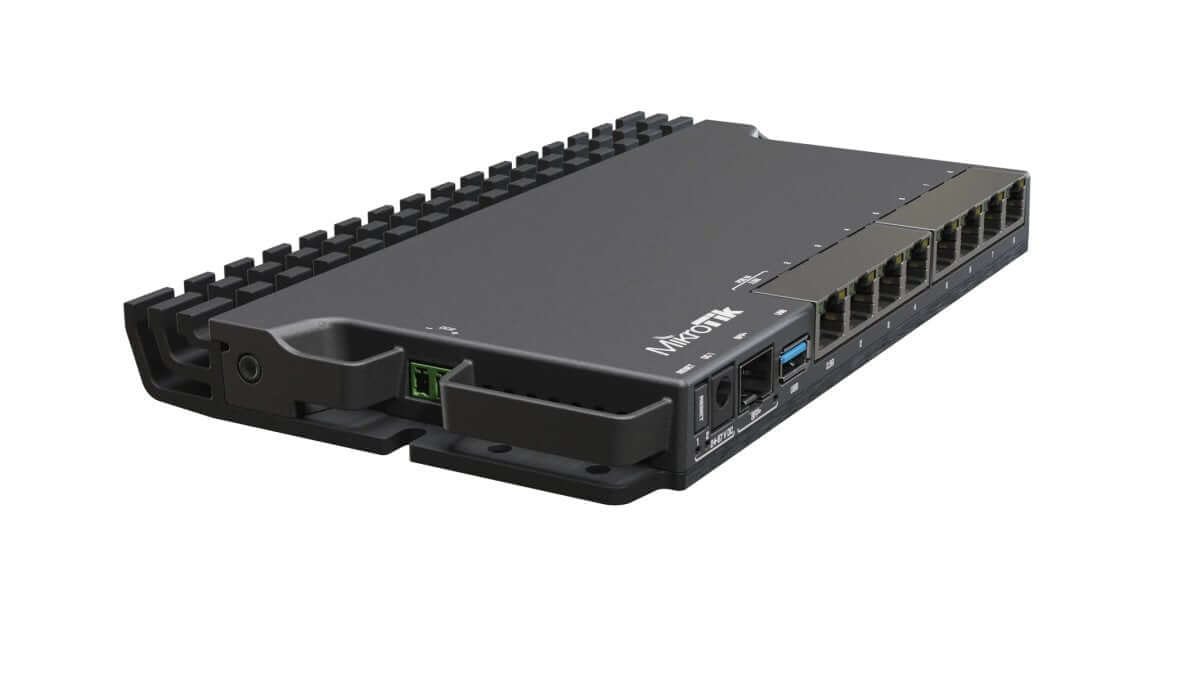

RB5009UG+S+IN →

For DDoS mitigation, consider rate limiting on the WAN interface. RouterOS queue rules limit bandwidth per connection or per source IP; a queue limiting each external IP to 1 Mbps prevents a single attacker from consuming your entire bandwidth.

MikroTik Remote Access Firewall Rules: Safe Configuration

Many home users want remote access via SSH or WinBox. This requires careful firewall rules that allow access without exposing your router to the internet.

Allowing SSH and WinBox access safely

SSH and WinBox are management protocols, and exposing them to the internet invites brute-force attacks.

If you must allow SSH from the internet, change the default port (22), use key-based authentication (not passwords), and restrict access by source IP. A rule like this in the input chain:

Chain: input Protocol: tcp Dst. Port: 2222 Src. Address: [your-external-ip] Action: accept

This accepts SSH on port 2222 only from your external IP. Replace [your-external-ip] with your actual IP address (or your ISP-provided range if static).

WinBox uses port 8291 by default. Apply the same principle: restrict it by source IP, or disable it and use SSH instead.

Port forwarding rules for specific services

Port forwarding (destination NAT) lets external traffic reach a specific device on your LAN, necessary if you host a web server or game server at home.

A port forwarding rule in the dstnat chain looks like:

Chain: dstnat Protocol: tcp Dst. Port: 80 Action: dst-nat To Addresses: 192.168.1.100 To Ports: 8080

This forwards HTTP traffic (port 80) on your router to port 8080 on the device at 192.168.1.100. Add a corresponding accept rule in the forward chain:

Chain: forward Protocol: tcp Dst. Address: 192.168.1.100 Dst. Port: 8080 Action: accept

Port forwarding is powerful but risky. Only forward ports to services you trust, keep them updated, and monitor access logs for suspicious activity.

Testing, Validation, and Safe Deployment

Configuration mistakes can lock you out of your router or break internet access. Test carefully before committing rules to production.

How to test rules without locking yourself out

Test on a non-critical interface first, or a spare router or lab setup if you have one. Otherwise, test one rule at a time on your production router, verifying connectivity after each change.

Before adding any rule, export your firewall configuration from IP > Firewall > Filter Rules (right-click > export) and save it somewhere safe so you can restore it if something breaks.

Test from a LAN device: add a rule, verify traffic still works, and remove it immediately if it breaks. Common mistakes include:

• Rules in the wrong chain (input vs. forward vs. srcnat)
• Rules in the wrong order (a deny rule before an allow rule)
• Incorrect interface or address matching

Rollback and recovery procedures

If you lock yourself out (can't reach the router via WinBox or SSH), you have options:

1. Physical reset: Hold the reset button for 10+ seconds to factory reset the router. This erases all configuration but restores access, a last resort.

2. Backup restore: If you exported your configuration beforehand, use IP > Backup to restore a working backup.

3. Serial console access: Connect via serial cable (if present) to access the terminal directly, bypassing the network to fix firewall rules or restore a backup.

4. Netinstall: Use MikroTik's Netinstall tool to reinstall RouterOS, a nuclear option that works when everything else fails.

The best strategy is prevention: test incrementally, keep backups, and never make multiple firewall changes at once.

Choosing the Right MikroTik Router for Home Firewall Needs

Not all MikroTik routers handle complex firewall rules equally, your choice depends on rule complexity and traffic volume. When selecting hardware, consider sourcing from Mikrotik Wholesale Pricing Products to ensure you're getting genuine, supported equipment.

For basic home networks with simple firewall rules, the hEX refresh offers excellent value.

For heavy-duty setups, the L009UiGS-2HaxD-IN is a compact powerhouse.

The mikrotik firewall home network security setup works best when matched to your router's processing power.

Configuring a MikroTik firewall for home network protection is a learnable skill that pays dividends in security and control.
