Cambium Networks

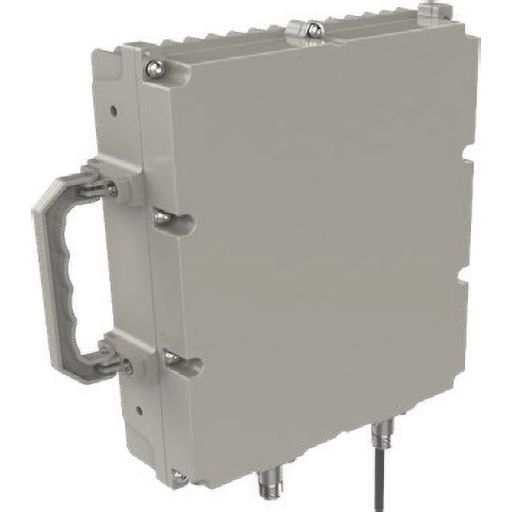

Cambium cnRanger Palisade 3.5GHz CBRS LTE Remote Radio Head

Cambium cnRanger Palisade 3.5GHz CBRS LTE Remote Radio Head

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
Shipping calculated at checkout.

The Cambium Networks cnRanger Fixed CBRS LTE wireless Palisade Remote Radio Head substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.

Product Features
• High Power Remote Radio Head (RRH) works through dense foliage where EIRP-limited 5 GHz is not an option.
• Fully managed and controlled by Baseband Unit (BBU)
• 2 LTE carrier support

Product Specifications
• Model Name: 3.5GHz Palisade 210
• Model Numbers: 3LTE-RRH-210
• Physical Layer: 2x2 MIMO OFDMA, SC-FDMA
• BBU Interface: SFP+ / CPRI v7.0 Fiber cable: N000000L131A, pre-terminated, 2m cable
• DC Power: Power cable N000000L130A, two conductor plus ground
• Antenna Connection: 2 N-Type
• Surge Suppression: EN61000-4.5: 1.2us/50us, 500 V voltage waveform
• Environmental: IP67
• Temperature / Humidity: -40°C to +55°C (-40°F to +131°F), 5 to 95% non-condensing
• Wind Survival: 200Km/Hr
• Operational Mounting Kit: 1.5" to 3.0" (38 to 76 mm) pole N000000L128A
• Power Consumption: 55W nominal, 72 W peak
• Recommended Power Supply: P/N: N000000L129A PSU - XP Power 120W PSU
• Input Voltage: ±48V DC (36V to 60V)
• Frequency Range: 2300 - 2700 MHz, Bands 38, 40, 41
• Channel Width: 5 MHz, 10MHz, 15MHz, 20MHz
• Transmit Power Range: 42dB dynamic range (1 dB step)
• Maximum Transmit Power: 33dBm per chain, 36dBm combined
• FCC ID: Z8H89FT0045
• ETSI: EN 301 908-1 v11.1.1, EN 50385 / EN 62311, Draft EN 301 489-50 v2.1.0

Product Includes
(1) 3.5Ghz cnRanger Palisade Remote Radio Head
(1) User Manual

Product Documentation
3LTE-RRH-210 Remote Radio Head Data Sheet
