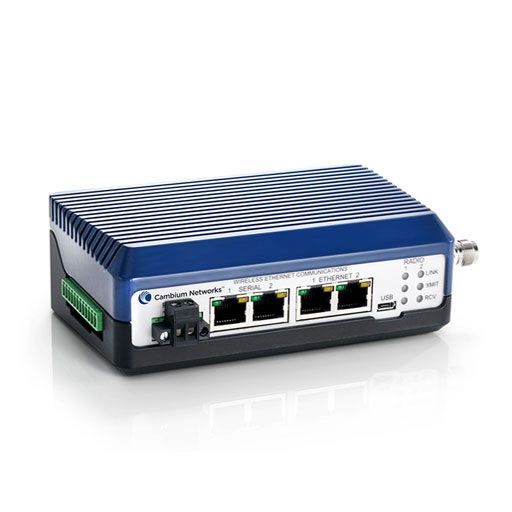

Cambium cnReach N500 220Mhz Dual Radio

Cambium cnReach N500 220Mhz Dual Radio

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
Shipping calculated at checkout.

The Cambium cnReach N500 220MHz provides consistent licensed band connectivity with wide-ranging I/O capabilities to ease migration to all-IP networks. This product has dual radio options with a 5 W output power and adaptive modulation. cnReach transports process monitoring and data control from the remote sensor back to the operations center with real-time decision making and continuous on going analytics.

The 220 MHz version of cnReach covers 217 to 222MHz and supports both FCC Part 80 and FCC Part 90 licensed band rules up to a maximum of 5W Tx Power
(limited to 2W by FCC in 217-220MHz)

Product Features
• Licensed 220Mhz (217 - 222Mhz / FCC Part 80 and Part 90)
• Up to 5W transmit (37 dBm); (limited to 2W in 217 to 220 MHz per FCC)
• Point-to-point, Point-to-Multipoint, and Relay configurations in same hardware, Back to Back Repeater, Stand-alone IO Expander
• Secure communications with AES 128/256-bit encryption and password authentication
• Highly reliable communications with access point synchronization and adaptive modulation
• Single and dual radio configurations for advanced back-to-back relay topologies.
• Extensive I/O capabilities easing the transition from serial to all-IP networks with multiple serial ports, Ethernet ports, and analog/ digital I/O built in.
• Sophisticated network planning with LINKPlanner, a no-charge planning tool enabling network designers to predict
both capacity and availability of networks crossing all of Cambium’s technologies.
• Supported by cnMaestro software for monitoring the status of entire networks carrying traffic across sensors

Product Specifications
• Frequency Range: 217-222Mhz and 200Mhz-222Mhz
• Output Power:
• Step Size 10mW
• Modulations MSK/ QPSK /8PSK / 16QAM / 32QAM
• Capacity 7.4 kbps to 689 kbps UDP throughput
• Range: Up to 70 miles
• Packet handling:
    Layer 2 bridge
    Layer 3 static routes
    VLAN support
• Error Correction: Up to 32-bit CRC, Re-transmit on error
• Data Encryption: 128/256-bit AES
• I/O and Serial Data Access: Optional I/O allows seamless integration of Modbus RTU and Modbus TCP protocols
• Management:
    Web-based interface via HTTP/HTTPS
    LinkPLanner integration (capacity and availability planning)
    Remote Management via SNMP
    cnMaestro integration (road map)
    Support for configuration files, remote software upgrades
    Built-in diagnostic tools via web interface such as RF Ping and RF Throughput
• Ethernet Interfaces: (2) RJ45, 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
• Serial Interfaces: (2) RJ45, RS-232/422/485, up to 230.4kbps
• Analog/Digital I/O (optional): 8 pins for analog input/output and digital input/output
• RF/Antenna: TNC RF connectors (1 or 2 depending on single or dual-radio configuration)
• Power Input: 10-32VDC with reverse polarity protection
• Power Consumption (12VDC) 2W Output
• IO Expander: 293mA
• Dimensions: 6.625 x 3.45 x 1.835" (168 x 876 x 466mm)
• Weight: 1.54lbs (0.70kg)
• DIN Rail Mount: Optional
• Operating Temperature: -40 to 60°C
• Humidity: 95% operating humidity @ 40°C non-condensing
• HAZLOC: UL-Approved to Class 1 / Div 2

Product Includes
(1) cnReach N500 Radio
(1) User Guide

Product Documentation
cnReach N500 220 Data Sheet
