cAP XL ac INTL
cAP XL ac INTL
There are 30 units left in stock.

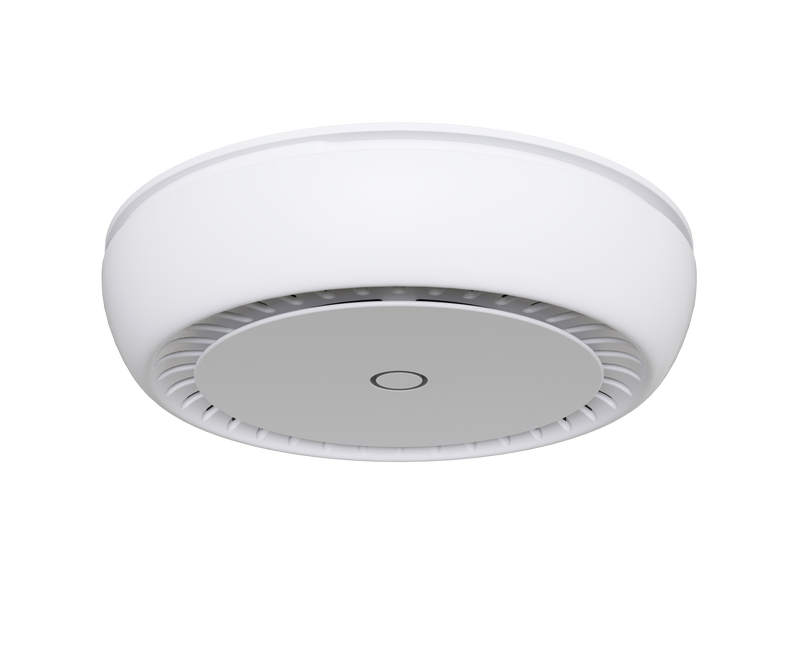

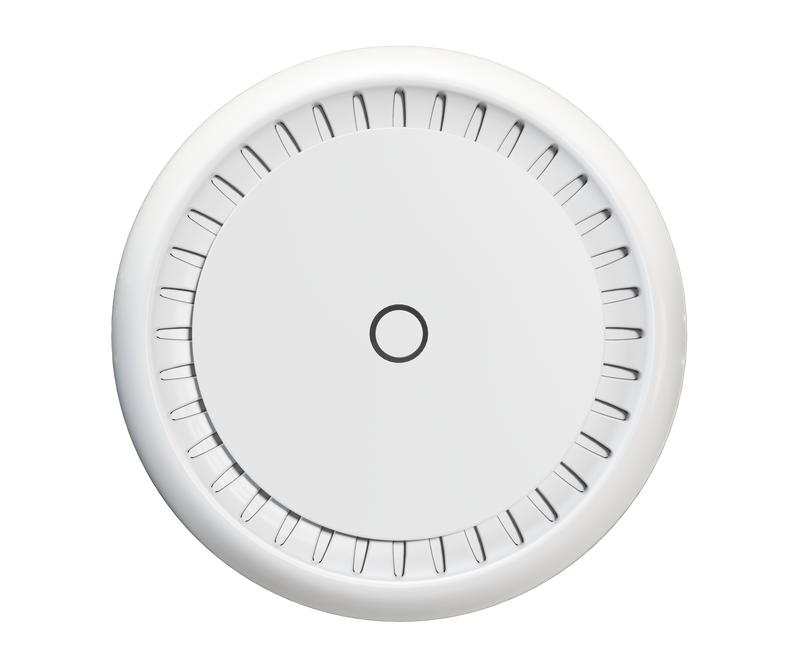

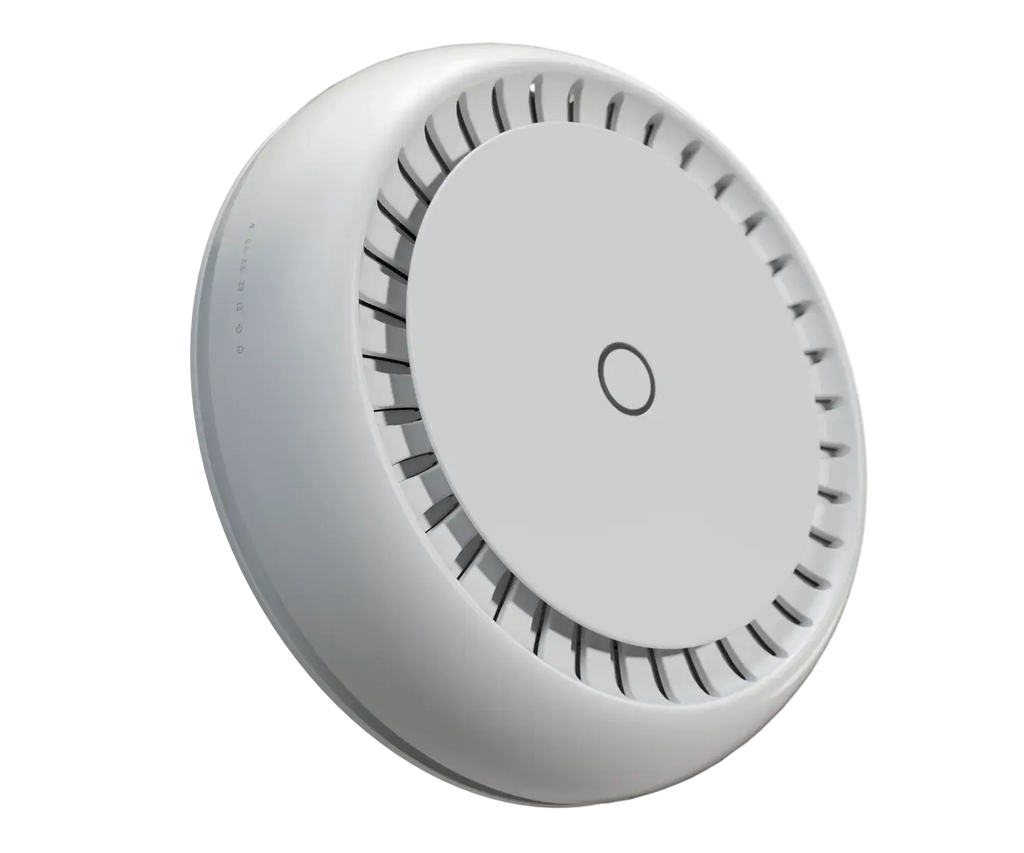

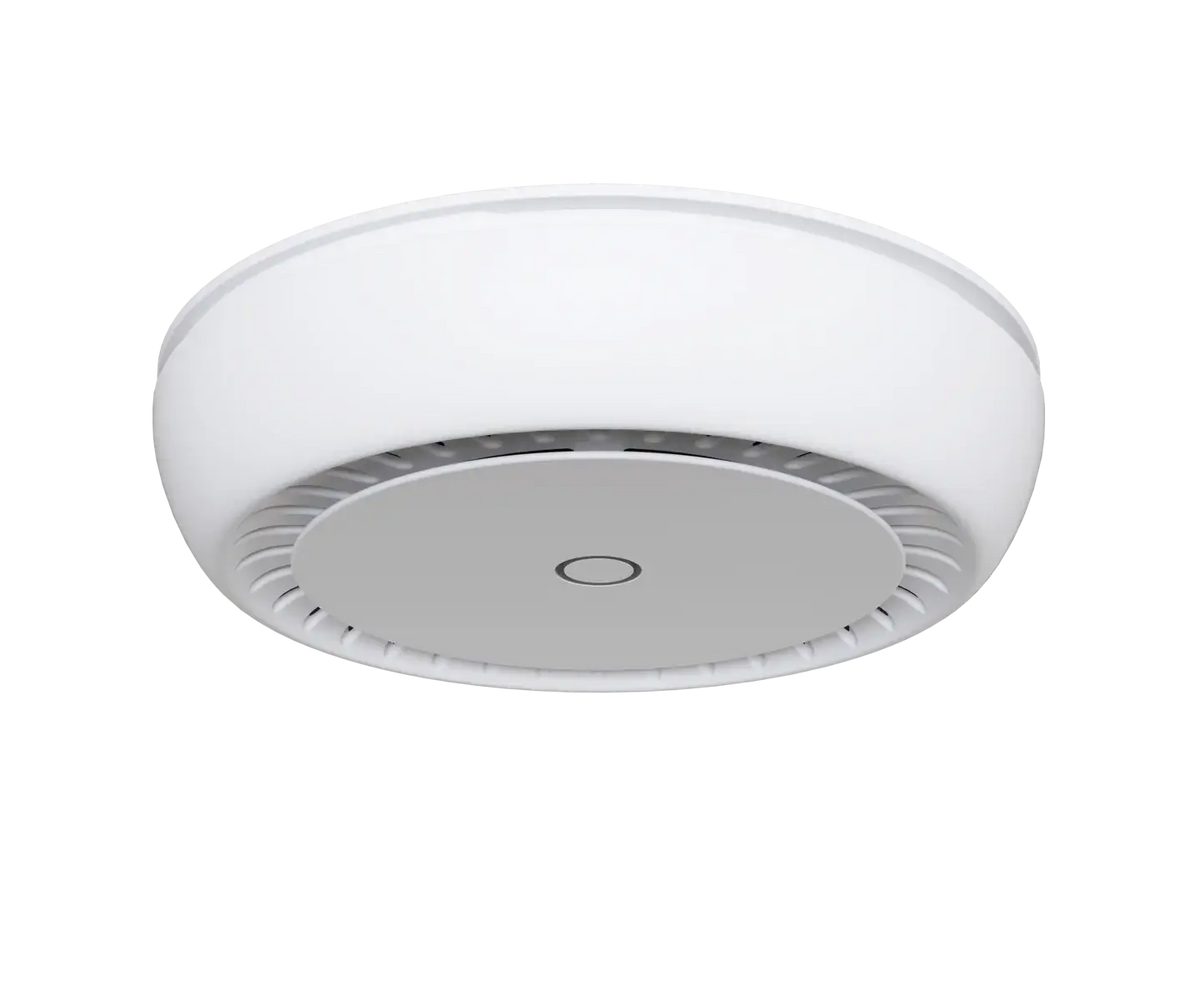

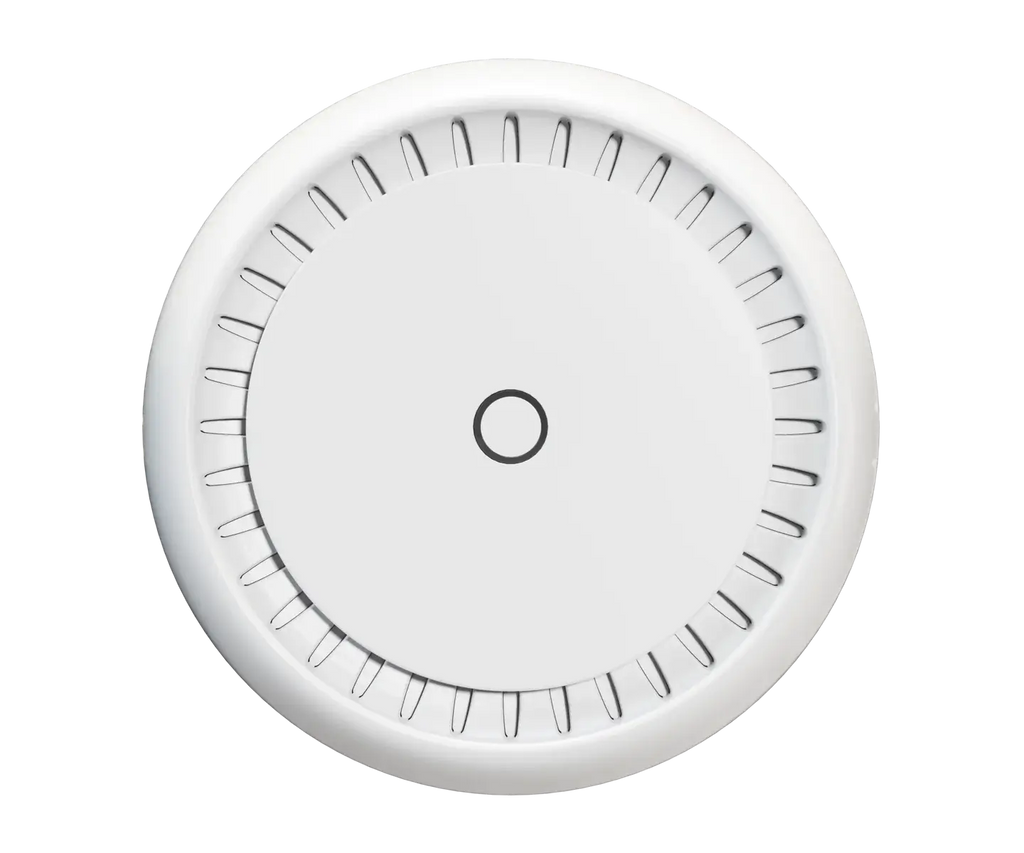

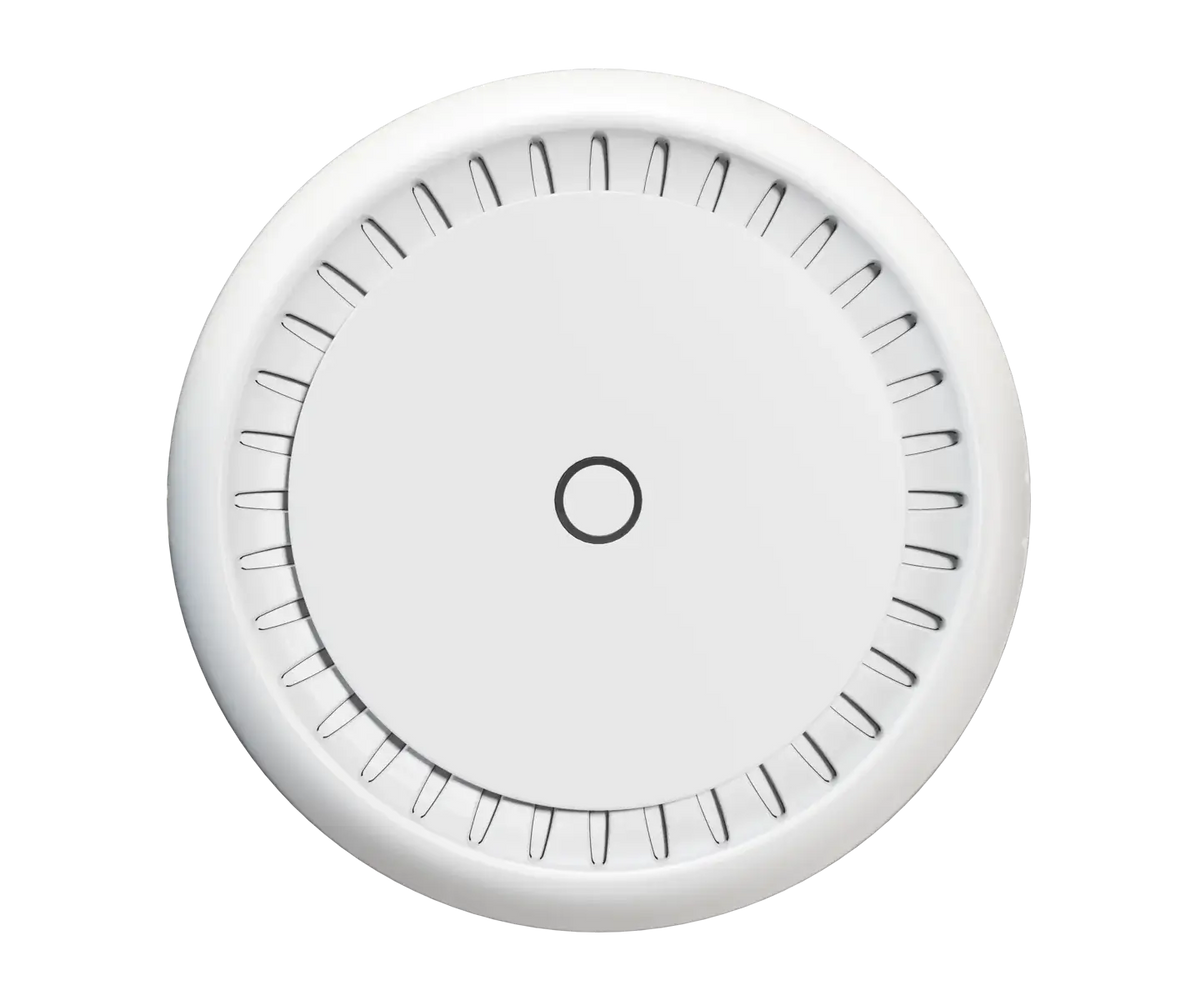

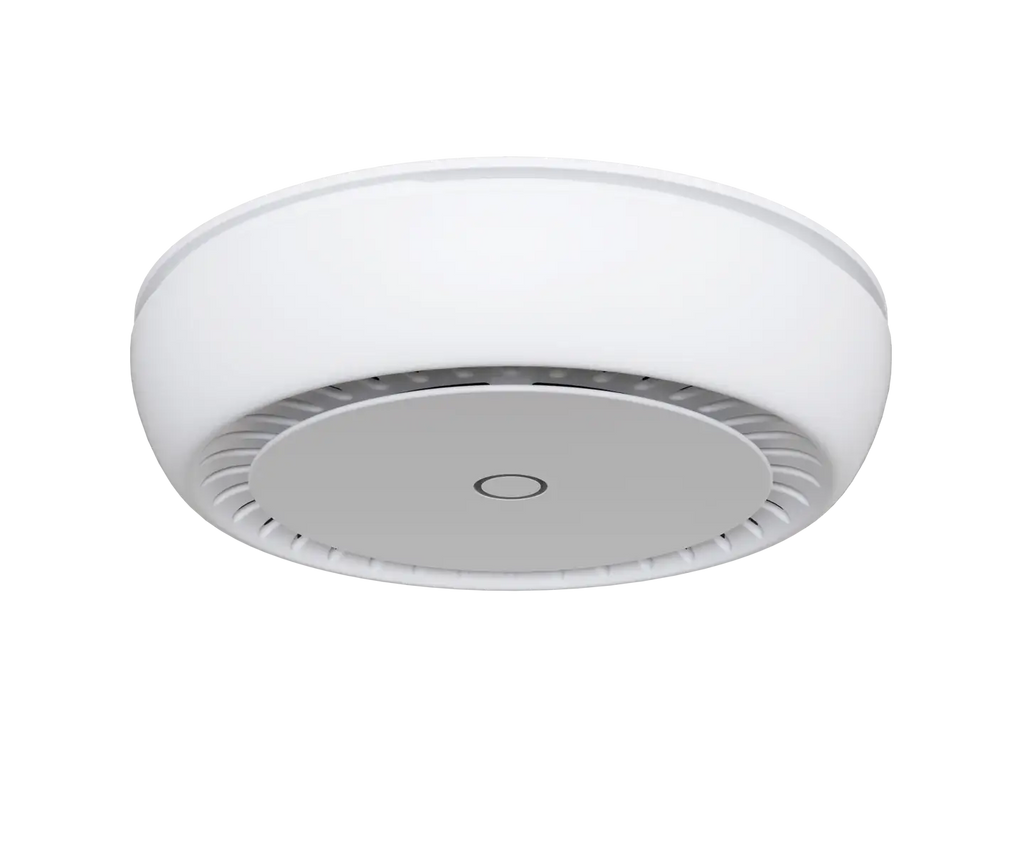

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

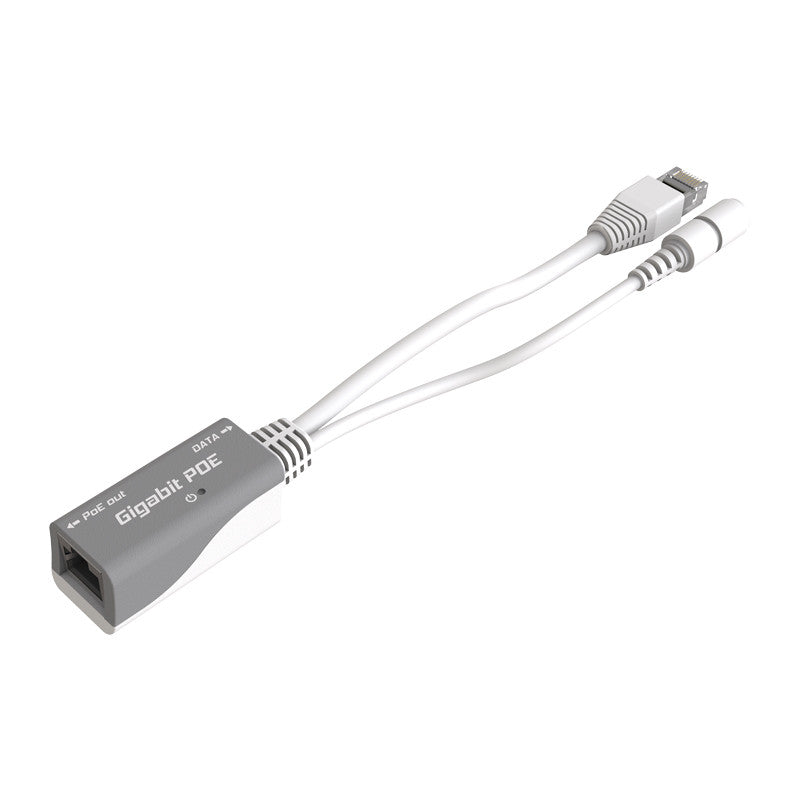

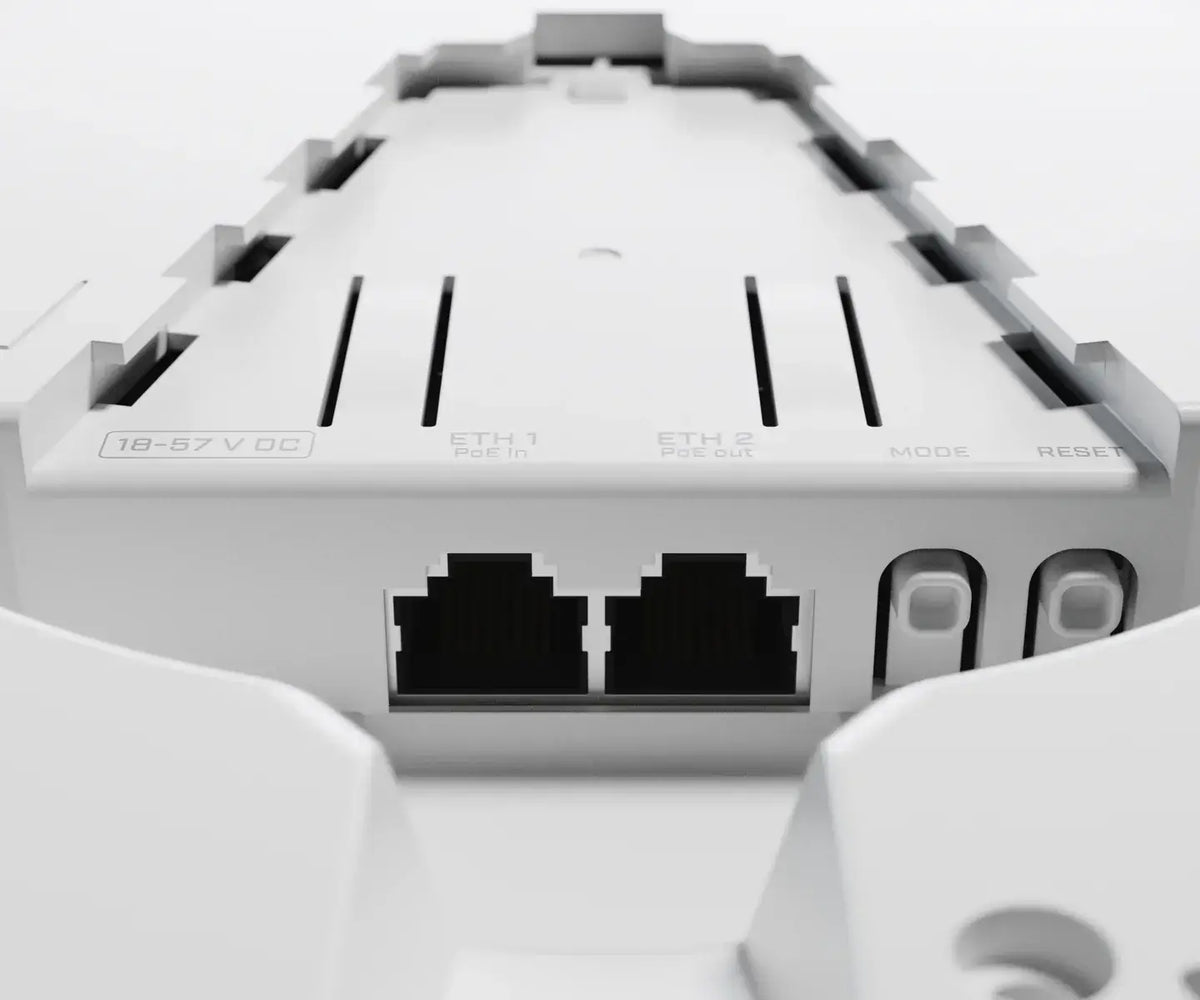

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
|CPU core count||4|
|CPU nominal frequency||716 MHz|
|Size of RAM||128 MB|
|Storage size||16 MB|
|MTBF||Approximately 100'000 hours at 25C|
|Tested ambient temperature||-40°C to 70°C|
|IPsec hardware acceleration||Yes|
|Wireless 2.4 GHz Max data rate||300 Mbit/s|
|Wireless 2.4 GHz number of chains||2|
|Wireless 2.4 GHz standards||802.11b/g/n|
|Antenna gain dBi for 2.4 GHz||6|
|Wireless 2.4 GHz chip model||IPQ-4018|
|Wireless 2.4 GHz generation||Wi-Fi 4|
|Wireless 5 GHz Max data rate||867 Mbit/s|
|Wireless 5 GHz number of chains||2|
|Wireless 5 GHz standards||802.11a/n/ac|
|Antenna gain dBi for 5 GHz||5.5|
|Wireless 5 GHz chip model||IPQ-4018|
|Wireless 5 GHz generation||Wi-Fi 5|
|10/100/1000 Ethernet ports||2|
|Number of 1G Ethernet ports with PoE-out||1|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||24 W|
|Max power consumption without attachments||11 W|
|PoE in input Voltage||18-57 V|
|PoE out||Passive PoE up to 57V|
|Max out per port output (input 18-30 V)||500 mA|
|Max out per port output (input 30-57 V)||330 mA|
|Max total out (A)||500 mA|
Certification & Approvals
|Certification||CE, FCC, IC, EAC, ROHS|
|2.4 GHz||Transmit (dBm)||Receive Sensitivity|
|5 GHz||Transmit (dBm)||Receive Sensitivity|
