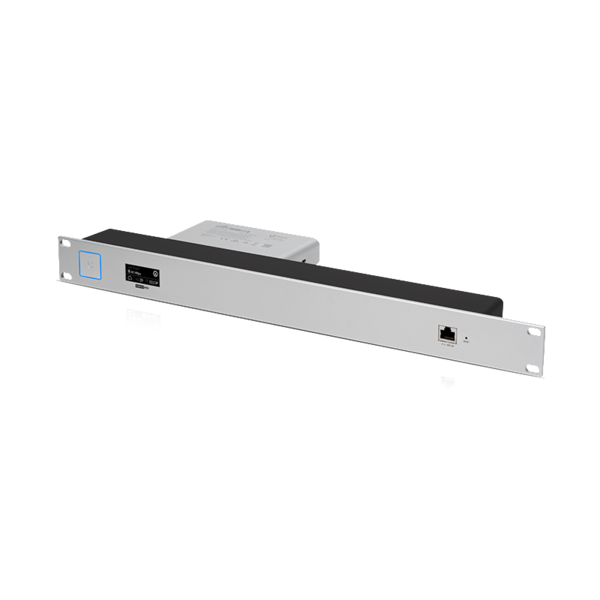

Cloud Key Gen2 Rack Mount

Mount your CloudKey G2 or CloudKey G2 Plus into a 19" rack with the Cloud Key G2 Rack Mount Accessory.

The Cloud Key G2 and Cloud Key G2 Plus lock securely into the back of the Rack Mount Accessory for a clean and secure installation. The Cloud Key front panel display, RJ45 ethernet connector, reset button, and status LED are exposed on the front panel for easy access.

Works with CloudKey G2 and Cloud Key G2 Plus
Front-panel ethernet port for clean installation
Includes four cage nuts and M6 bolts

CKG2-RM
Dimensions	27.10 x 46.80 x 119.75 mm (1.07 x 1.84 x 4.71")
Weight	172 g (6.07 oz)
Enclosure	Aluminum
Management Interface	UniFi
Networking Interface	(1) 10/100/1000 Ethernet Port
Buttons	(1) Reset to Defaults Power
Power Method	802.3af PoE DC 5V, 1A
Power Supply	802.3af PoE or USB-C 5V, Minimum 1A
Max. Power Consumption	5W
Operating Temperature	0 to 35° C (32 to 104° F)
Operating Humidity	20 to 80% Noncondensing
Certifications	CE, FCC, IC
