If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

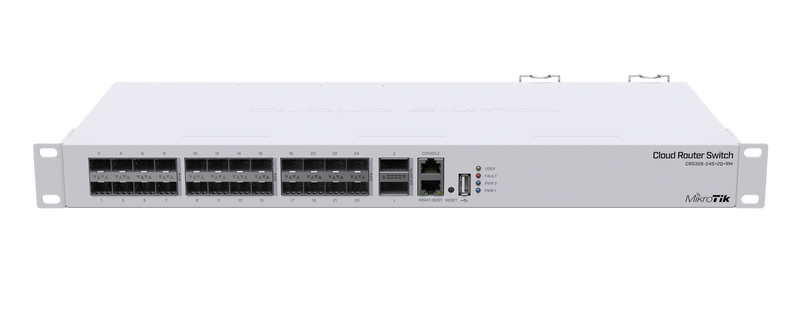

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

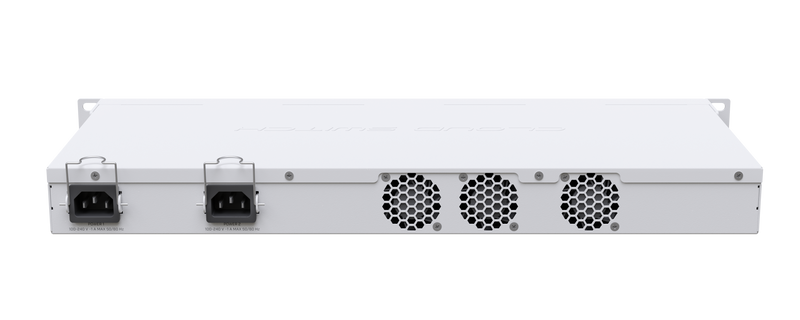

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.
|CPU core count||1|
|CPU nominal frequency||650 MHz|
|Dimensions||443 x 200 x 44 mm|
|Operating System||RouterOS / SwitchOS|
|Size of RAM||64 MB|
|Storage size||16 MB|
|MTBF||Approximately 200'000 hours at 25C|
|Tested ambient temperature||-20°C to 60°C|
|Number of AC inputs||2|
|AC input range||100-240|
|Max power consumption||69 W|
|Max power consumption without attachments||42 W|
|Cooling type||3 fans|
|10/100 Ethernet ports||1|
|Number of 40G QSFP+ ports||2|
|Serial console port||RJ45|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Max USB current (A)||1|
Certification & Approvals
|Certification||CE, EAC, ROHS|
