UBIQUITI

EdgePoint R6

EdgePoint R6

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Application-specific WISP control point with (5) Gigabit RJ45 ports and an SFP port.

Ubiquiti introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

Features:

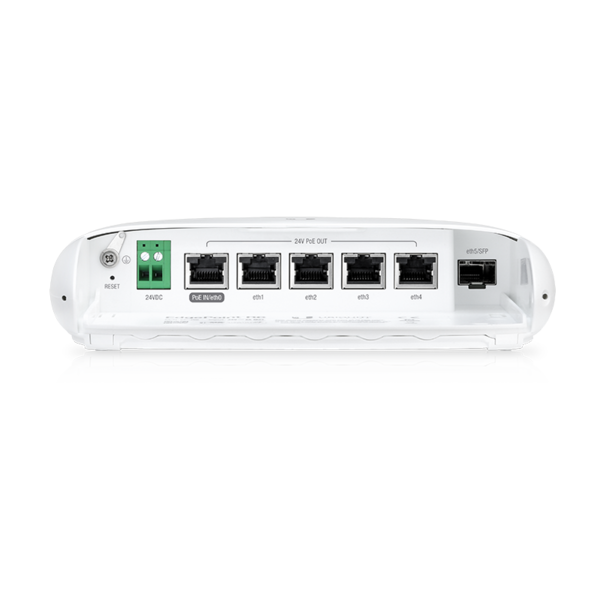

Five RJ45 Ethernet ports and one SFP Ethernet port
Weatherproof Enclosure for Outdoor Use
Powerful Routing or Switching Features
Fiber Backhaul Capability
Intuitive User Interface
EP-R6
Dimensions 188.6 x 177.1 x 49.8 mm
(7.43 x 6.97 x 1.96")
Weight 605 g
(1.33 lb)
Enclosure Characteristics Polycarbonate with UV Resistance
Max. Power Consumption 7W (Excludes PoE Output)
Power Input (1) DC Terminal Block
or
(1) RJ45 (eth0)
(Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply Min. 24V / 0.3A (Excludes PoE Output Power)
VDC Input 24V, 3A
Passive PoE Input (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
(Do NOT Configure eth0 in PoE Output Mode if You Are Using a PoE Input Power Source.)
Passive PoE Output (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
Power Monitoring (1) DC Terminal Block, Input Power
(1) RJ45, eth0, Input Power
Supported Voltage Range 26 to 16VDC
Button Reset

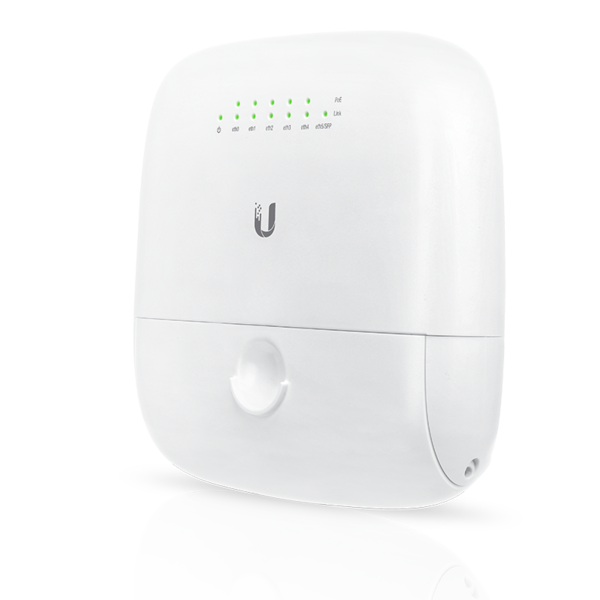

LEDs
System
eth0 to eth4
eth5/SFP

Power
Speed/Link/Activity, PoE
Speed/Link/Activity
Ports
Data Ports
(5) 10/100/1000 RJ45 Ports
(1) 1 Gbps SFP Port
Processor Dual-Core 880 MHz, MIPS1004Kc
System Memory 256 MB DDR3-1600 RAM
Code Storage 256 MB NAND
Certifications CE, FCC, IC

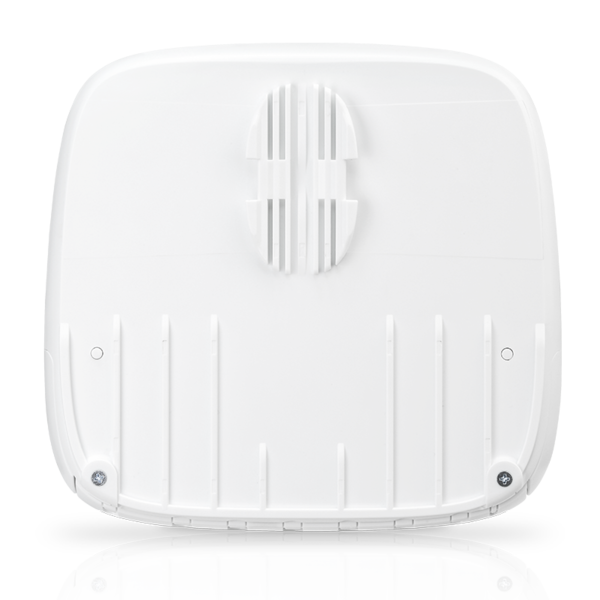

Pole Mount Yes
Wind Loading 46 N @ 200 km/h (10.34 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 to 90% Noncondensing
