UBIQUITI

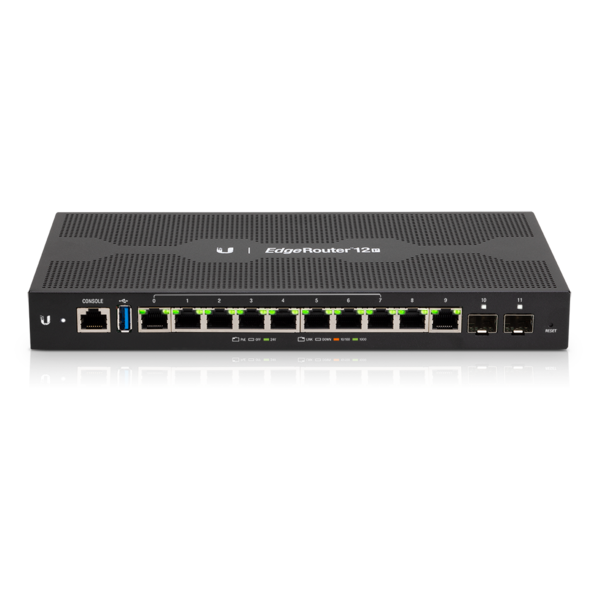

EdgeRouter 12P

EdgeRouter 12P

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
ER-12P
Shipping calculated at checkout.

Router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, and (2) SFP ports, each equipped with a 24V, two-pair PoE output.

The EdgeRouter 12P is a high performance Gigabit Router with 24V 2-Pair PoE output on each port. With increased performance over the previous generation of routers, the EdgeRouter 12P delivers up to 3.4 million pps for 64-byte packets. Ten Gigabit Ethernet ports offer copper connectivity, while two SFP ports offer fiber connectivity. The EdgeRouter 12P supports Layer-2 switching and scalable configuration using EdgeOS or UISP.

Compatible with EdgeMAX Universal Rack-mount Kit - Sold separately

EdgeRouter 12P
Dimensions 268.1 x 136.5 x 31.1 mm
(10.55 x 5.37 x 1.22")
Weight 700 g
(1.54 lb)
Max. Power Consumption 20W (Excludes PoE Output)
Power Method External AC/DC Power Adapter, 12W (24VDC, 2.5A) (Included)
Power Supply External AC/DC Adapter
Supported Voltage Range 9 - 30VDC
Button Reset
LEDs
System
Data Ports
SFP Data Port

Power
PoE, Speed/Link/Activity
Link/Activity
Processor 4-Core 1 GHz MIPS64
System Memory 1 GB DDR3 RAM
On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Interfaces
Management
Networking

(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0)
(10) 10/100/1000 RJ45 Ports, (2) 1 Gbps SFP Ports
Operating Temperature -10 to 40° C (14 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
PoE with 24VDC Power Adapter
PoE Interfaces (10) 24V Passive PoE Ports, 2-Pair (Pins 4, 5+; 7, 8-)
Passive PoE Max. Wattage per Port 17W (24V)
Passive PoE Voltage Range 24V: 20 to 30V
