Cambium Networks

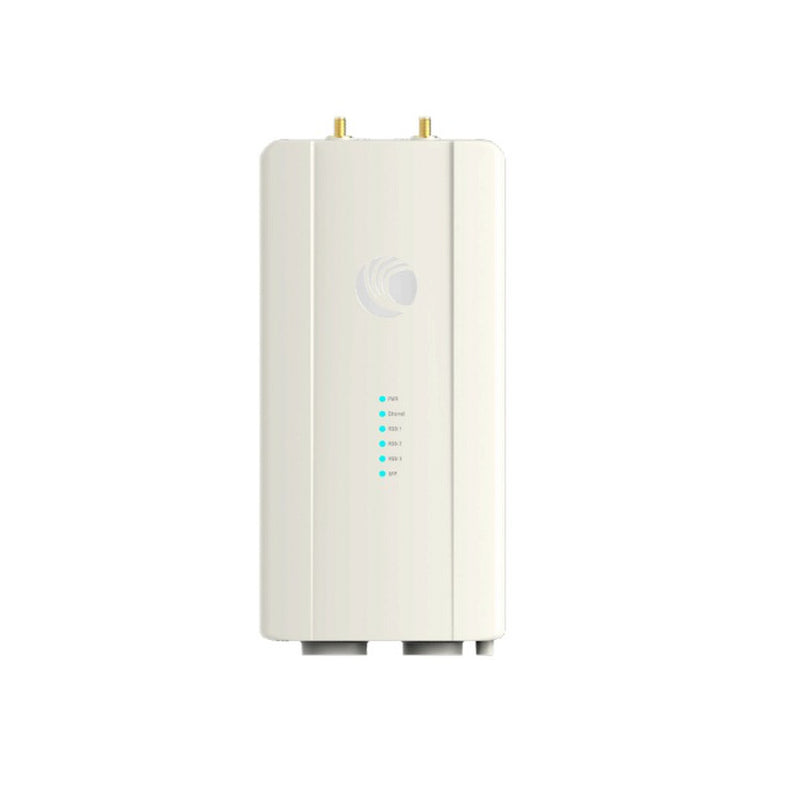

Cambium ePMP 5 GHz Force 400C (ROW) (US Cord)
Cambium ePMP 5 GHz Force 400C (ROW) (US Cord)
There are 18 units left in stock.
Couldn't load pickup availability
ePMP 5 GHz Force 400C (IC) (Canada/US cord)
Cambium Networks introduces the ePMP™ Force 400C point-to-point solutions, delivering up to 1 Gbps throughput at a breakthrough price point, based on the latest 802.11ax standards and Cambium’s proprietary ePTP protocol. The Force 400 Series is the ideal solution for service providers looking to deliver high-capacity access services to enterprise and residential customers. It also serves as a low-cost backhaul for MicroPOPs and outdoor Wi-Fi access points that require a lot of capacity at moderate range without the overhead of licensed microwave. With an integrated SFP port and optional GPON ONU module, the Force 425 makes a great fiber extension to reach places where fiber cannot.
For even longer-range applications, the Force 400C is a connectorized option with two RP-SMA RF interfaces for use with larger parabolic dishes or horn antennas.
Leveraging the latest technology from the 802.11ax standard and Cambium’s proprietary ePTP protocol, the Force 400 Series delivers high-spectral efficiency with features such as 1024QAM modulation, 80 MHz channels, and a highly efficient frame structure. The Force 400 Series delivers up to 1 Gbps performance with less than 5 ms latency.
The Force 400 series has enterprise-grade security with 128-bit AES over-the-air encryption (256-bit AES where export rules allow), secure management interfaces (HTTPS and SNMPv3) with roles-based authentication and standards-based device authentication including RADIUS support.
Built for the real world, the Force 400 Series has IP67 ruggedization and a simplified mounting scheme and includes the Cambium Networks 3-year hardware warranty.
Plan and manage your Force 400 Series deployments with Cambium’s LINKPlanner, cnHeat, and cnMaestro™.
Specifications C058940C124A
| Channel Width MHz | 20 | 40 | 80 |
| Proprietary Physical Layer | 802.11ax, 2x2 MIMO/OFDM |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910 - 6135 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules Protocols |
| Used | IPv4/IPv6 (Dual Management Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Maximum Capacity | 1 Gbps |
| Latency | < 5 ms |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Physical | |
| Connectors | 1 x RJ-45, 1 x SFP, 2 x RP-SMA |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 65°C (-22°F to 149°F) |
| Weight | 1.3 kg (2.9 lbs.) |
| Wind Survival | 200 km/hour (124 mph) |
| Dimensions(H x W x D) | 256 mm x 125 mm x 46 mm (10.1 in x 4.9 in. x 1.8 in.) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 28 W |
| Input Voltage | 802.3at or Passive PoE 44-59 V |
| Security | |
| Encryption | 128-bit Over-the-Air Encryption (256-bit AES where export rules allow - ROADMAP Feature) |
| Certifications | |
| FCC Regulatory Part Number | C058940P122A |
| FCC ID** | Z8H89FT0062 |
| ETSI/ROW Regulatory Part Number | C050940P021A |
| Industry Canada Cert** | 109W-0062 |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)** |
