UBIQUITI

G4 Doorbell Power Supply

G4 Doorbell Power Supply

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

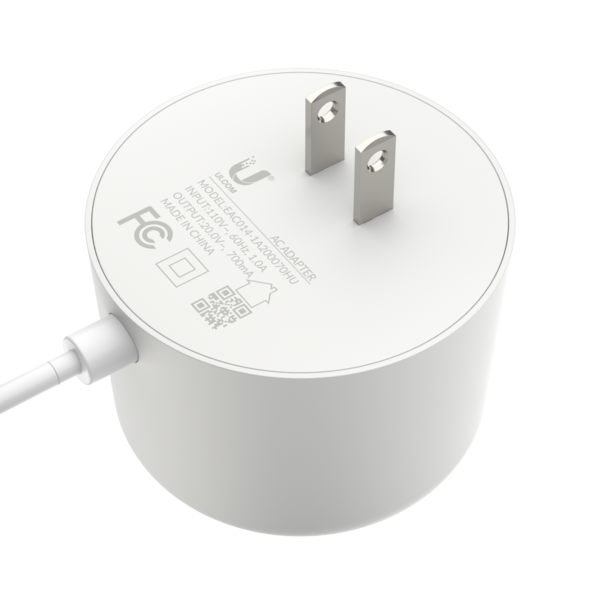

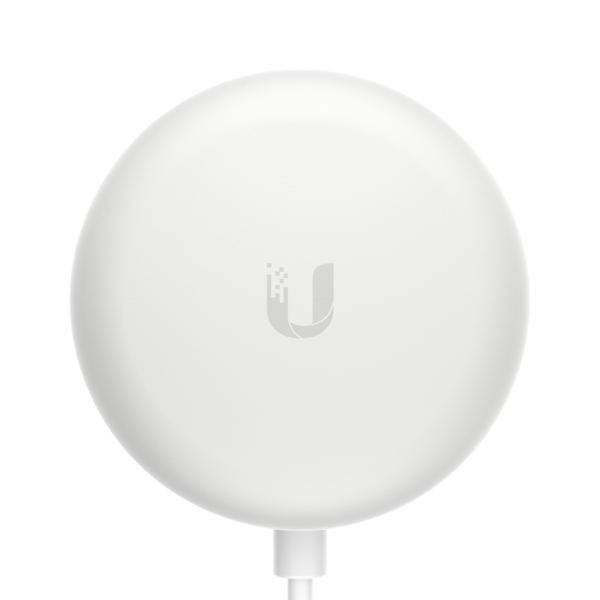

The UVC-G4-Doorbell-PS is an optional power adapter for the UVC-G4-Doorbell.

Instead of using existing electrical wiring, one end connects to the doorbell and the other end plugs into a standard US electrical outlet. Maximum distance: 6 m (19' 8")

Features:
Plugs into standard US electrical outlet
Input: 110VAC, 60 Hz, 1A
Output: 20VAC, 0.7A
Cable length: 6 m (19' 8")
(2) Spade wire connectors
Mechanical
Lenght 6 m (19' 8")
Weight 496 g (1.09 lb)
Jacket Dimensions Ø64.8 x 63.4 mm (Ø2.6 x 2.5")
Jacket Enclosure Material Polycarbonate
Connector Type Spade Terminal
Hardware
Input Rating 110VAC, 1A Max., 60 Hz
Output Rating 20VAC, 0.7A
Operating Temperature -10 to 40° C (14 to 104° F)
Operating Humidity 0 - 95% Noncondensing
Certifications CE, FCC, IC
