MIKROTIK

LtAP mini LTE kit

LtAP mini LTE kit

Regular price $149.00 USD
Regular price Sale price $149.00 USD
Sale Sold out

There are 20 units left in stock.

Shipping calculated at checkout.

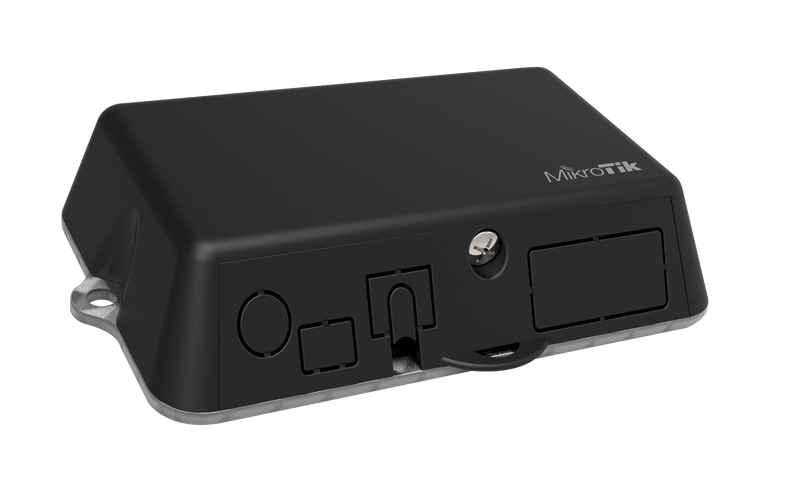

The LtAP mini LTE kit is a small weatherproof wireless access point with a built-in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.

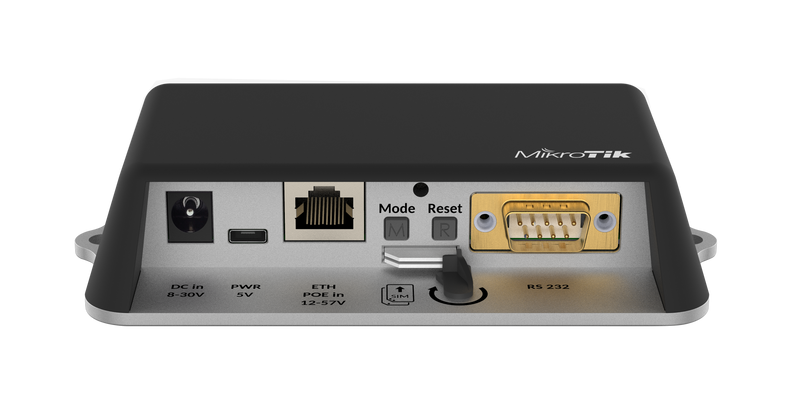

Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

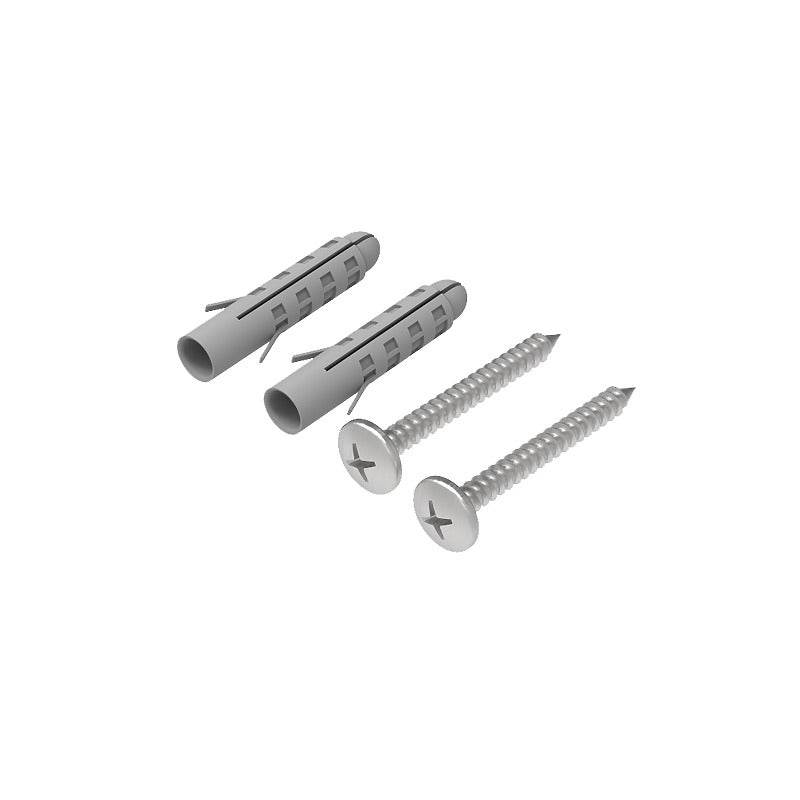

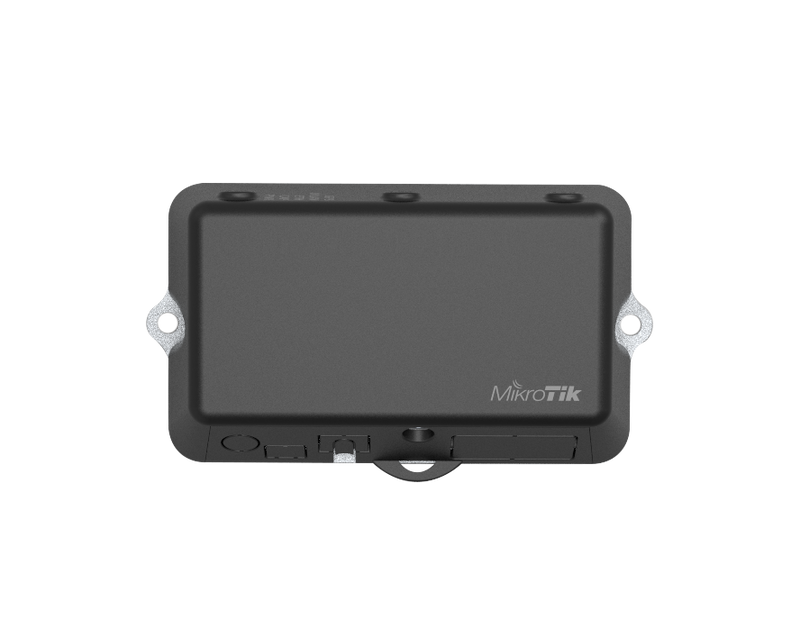

LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).

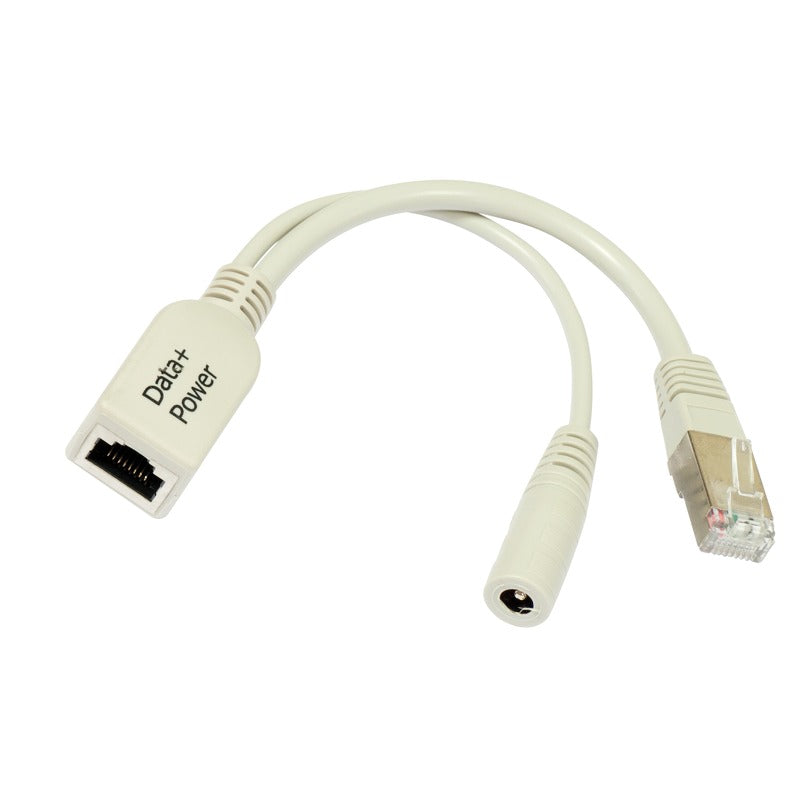

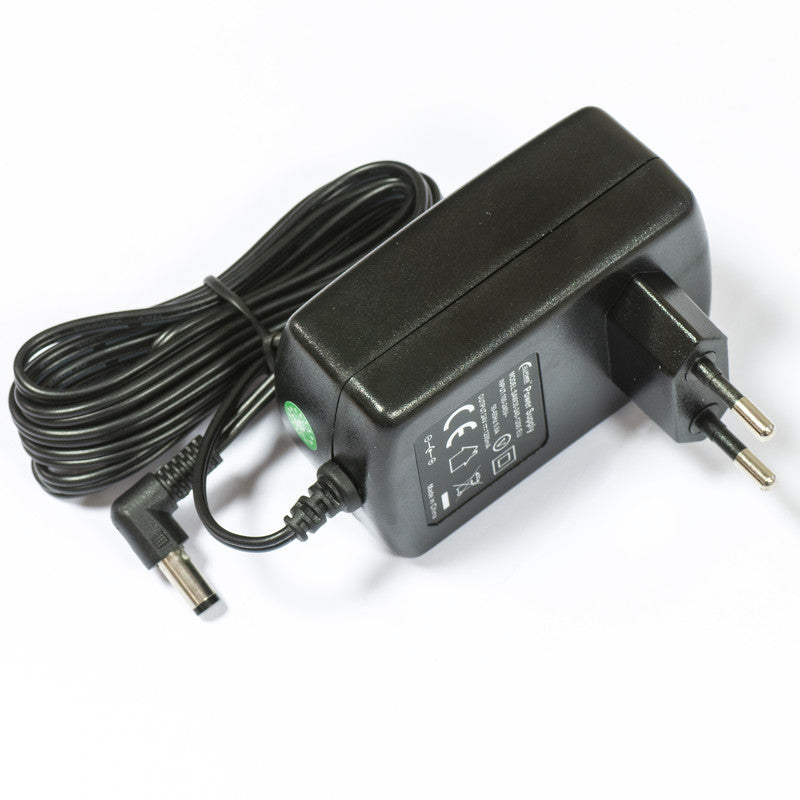

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 12-57 V PoE-in by Ethernet port, 8-30 V DC jack and 5 V microUSB.

Use the built-in GPS module to track the location of your vehicle in real-time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

Specifications

Details
Product code RB912R-2nD-LTm&R11e-LTE
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 139 x 77 x 28,5 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
MicroUSB input Voltage 5-5 V
Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage 8-30 V
Max power consumption 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Peripherals

Details
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 1
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1

Other

Details
Mode button Yes
GNSS standards GPS
GPS RF connector type uUFL

Certification & Approvals

Details
Certification CE, FCC, IC, E-MARK, EAC, ROHS
IP IP20

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
