UBIQUITI

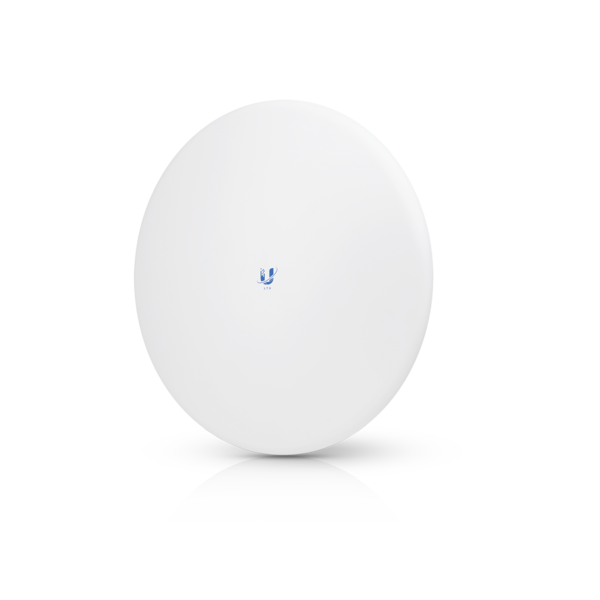

LTU Pro

LTU Pro

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
LTU-PRO-US
Shipping calculated at checkout.

5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Features:
PtMP CPE
1024 QAM
10/20/30/40/50 MHz channel bandwidth
Central configuration management from AP side
Frequency split
Automatic power adjustments
Router mode support
Functions in a PtMP environment with the LTU-Rocket as the basestation
LTU-Pro
Dimensions 316.5 x 316.5 x 174.3 mm
(12.46 x 12.46 x 6.86")
Weight 1.3 kg
(2.87 lb)

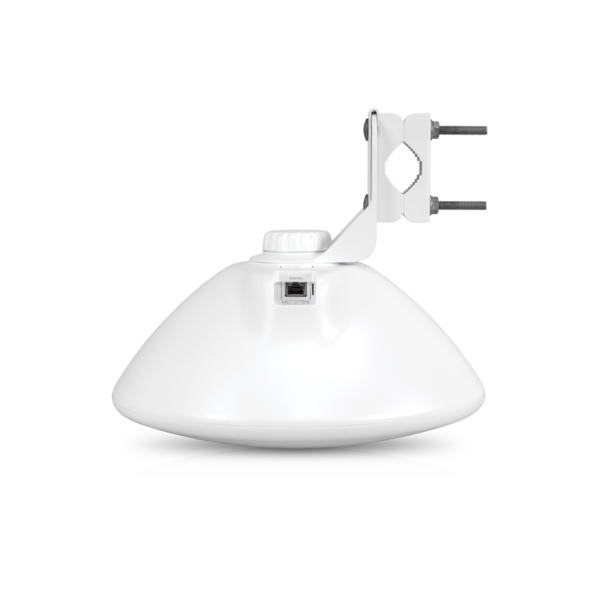

Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 9W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range 22 -26V
Max. Conducted TX Power 22 dBm (per Chain)
Gain 24 dBi
Beamwidth 14°
Sidelobe Level -10 dB
Front-to-Back Ratio 27 dB

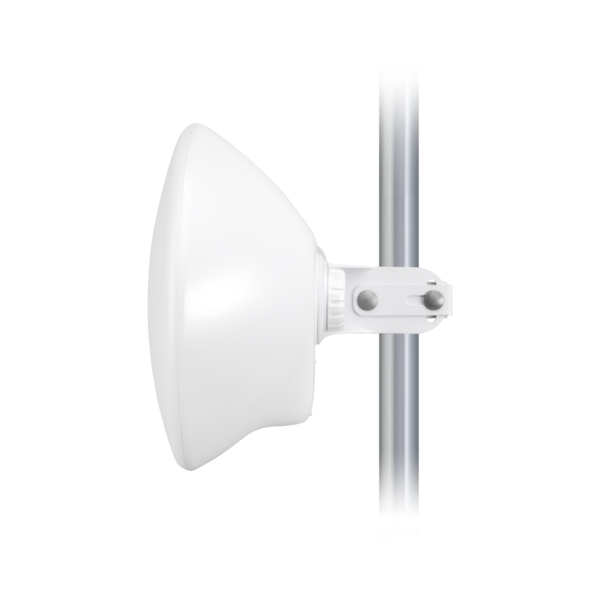

Mounting Pole-Mount (Kit Included)
Wind Loading 150 N @ 200 km/h
(33.72 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature ‐40 to 60° C
(‐40 to 140° F)
Operating Humidity 10 -90% Noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 2400 -2483.5*
4800 -6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 -5250
5250 -5350
5470 -5725
5725 -5850
EU 2400 -2483.5
5150 -5875

*Depends on regulatory region
