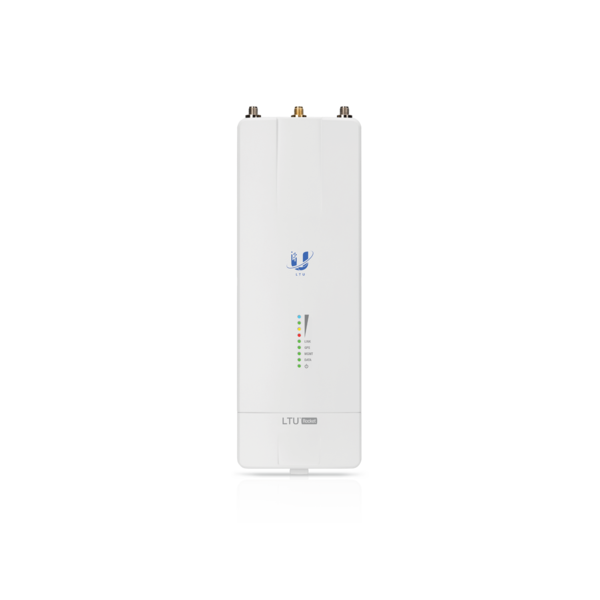

LTU Rocket

LTU Rocket

$0.00 USD
$0.00 USD
Sale Call for Availability
LTU-Rocket-US
Shipping calculated at checkout.

5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as Clients.

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.

Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

TECHNICAL SPECIFICATIONS
  • Width x Height x Depth:
    224 × 82 × 48mm (8.82 × 3.23 × 1.89")
  • Weight: 0.468 kg (1.03 lb)
  • GPS: External, Magnetic Base
Operating Frequency
  • 5150-5250MHz
  • 5740-5850MHz
Power
  • Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
  • Power Method: Dual Passive Power over Ethernet
  • Max. Power Concumption: 25W
  • Supported Voltage Range: +18 to +54VDC*
Networking Interface

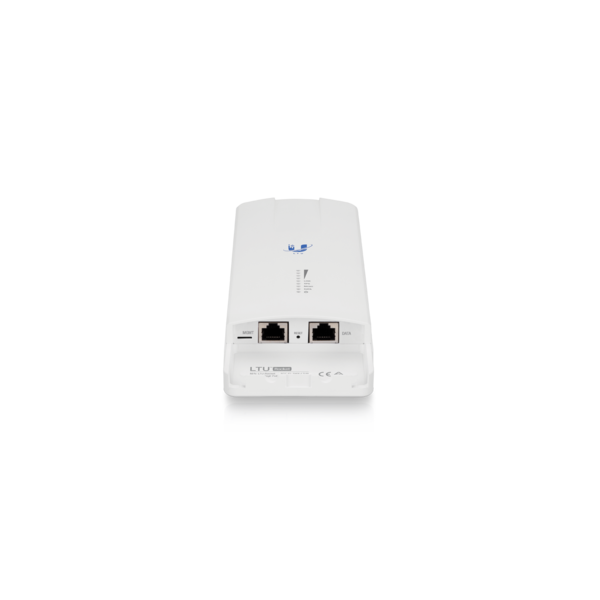

  • Data Port: (1) 10/100/1000 Ethernet Port
  • Configuration Port: (1) 10/100/1000 Ethernet Port
System
  • Processor: LTU IC
  • Maximum Throughput: 600 Mbps*
  • Maximum Range: 200+ km**
  • Encryption: 128-bit AES
  • Operating System: airOS F
Radio Frequency
  • Max TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy
  • ± 2.5 ppm without GPS Synchronization
  • ± 0.2 ppm with GPS Synchronization
Channel Bandwidth
  • 10/20/30/40/50 MHz Selectable
    Programmable Uplink and Downlink Duty Cycles
Environment
  • Operating Temperature: -40° to 55° C (-40° to 131° F)
Certifications
  • FCC
Mounting
  • airFiber X Mount (Rocket Mount Compatible)
  • GPS Pole Mount (Included)
*1+ Gbps with future firmware upgrade
** Throughput and range values may vary depending on the environmental conditions
