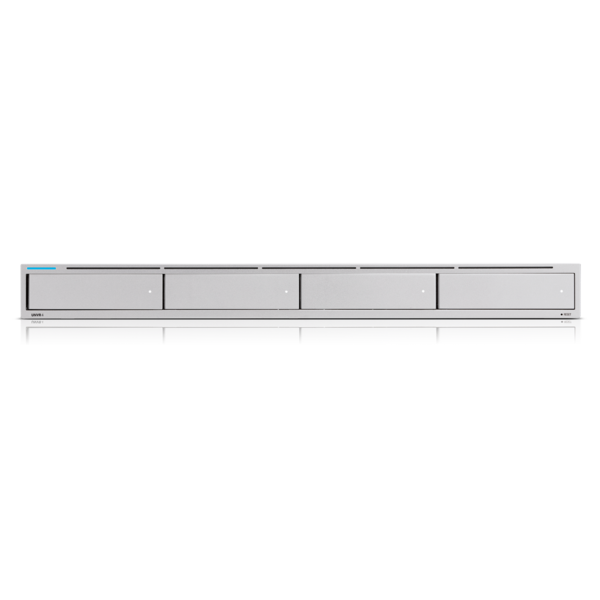

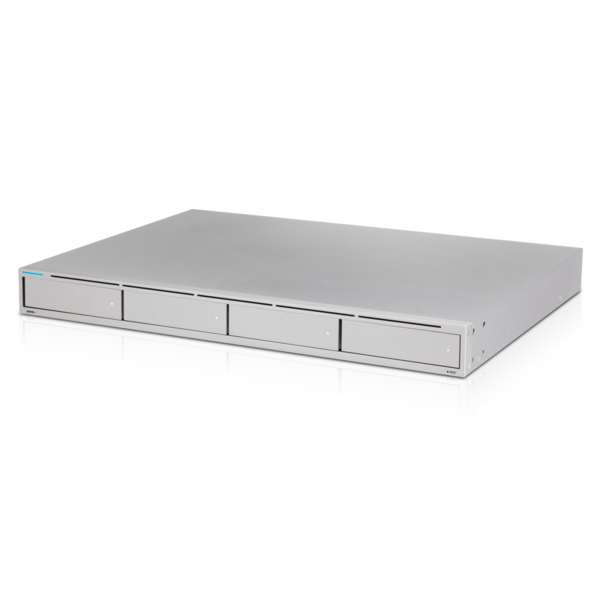

Network Video Recorder

The Network Video Recorder (UNVR) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 30 days of storage for 15 4K cameras or 50 1080p cameras).

The UNVR is a UniFi OS Console that runs the pre-installed UniFi Protect application and has spacious storage for up to 4 compatible 2.5” or 3.5" HDDs. The powerful, easy-to-use UNVR can be deployed in minutes and support systems with up to 50 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app. The UNVR also offers sophisticated data protection and continuity by automatically applying RAID 1 or 5 configuration based on the number of HDDs installed.

Features:
(4) 2.5"/3.5" HDD bays
(1) 10G SFP+ port
(1) GbE RJ45 port
1U-sized, rack-mountable console (kit included)
Pre-installed UniFi Protect application
Automated RAID 1 or RAID 5 HDD configuration
Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
Allows you to easily scale your deployment by connecting additional UniFi devices

Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't

Mechanical
Dimensions	442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight	Without Rackmount Brackets: 5.11 kg (11.27 lb) With Rackmount Brackets: 5.20 kg (11.46 lb)
Enclosure Material	SGCC Steel
Hardware
Processor	Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System Memory	4 GB
On-Board Flash Storage	8 GB
Max. Power Consumption	100W
Max. Power Budget for Drives	75W
Power Method	(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 10.43A
Power Supply	AC/DC, Internal, 120W
Networking Interfaces	(1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet
Management Interface	Ethernet In-Band Management
ESD/EMP Protection	Air: ± 12kV, Contact: ± 8kV
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 - 95% Noncondensing
Certifications	FCC, CE, IC
LEDs
System	(1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue/White: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted
Ethernet	Green: 1000 Mbps, Amber: 10/100 Mbps
SFP+	White: 10 Gbps, Green: 1 Gbps
HDD	Amber: Disk Error, White: Disk Detected
RPS	Blue: Ready
