PowerBox Pro

PowerBox Pro

Regular price $109.00 USD
Regular price Sale price $109.00 USD
Sale Sold out

There are 20 units left in stock.

Shipping calculated at checkout.

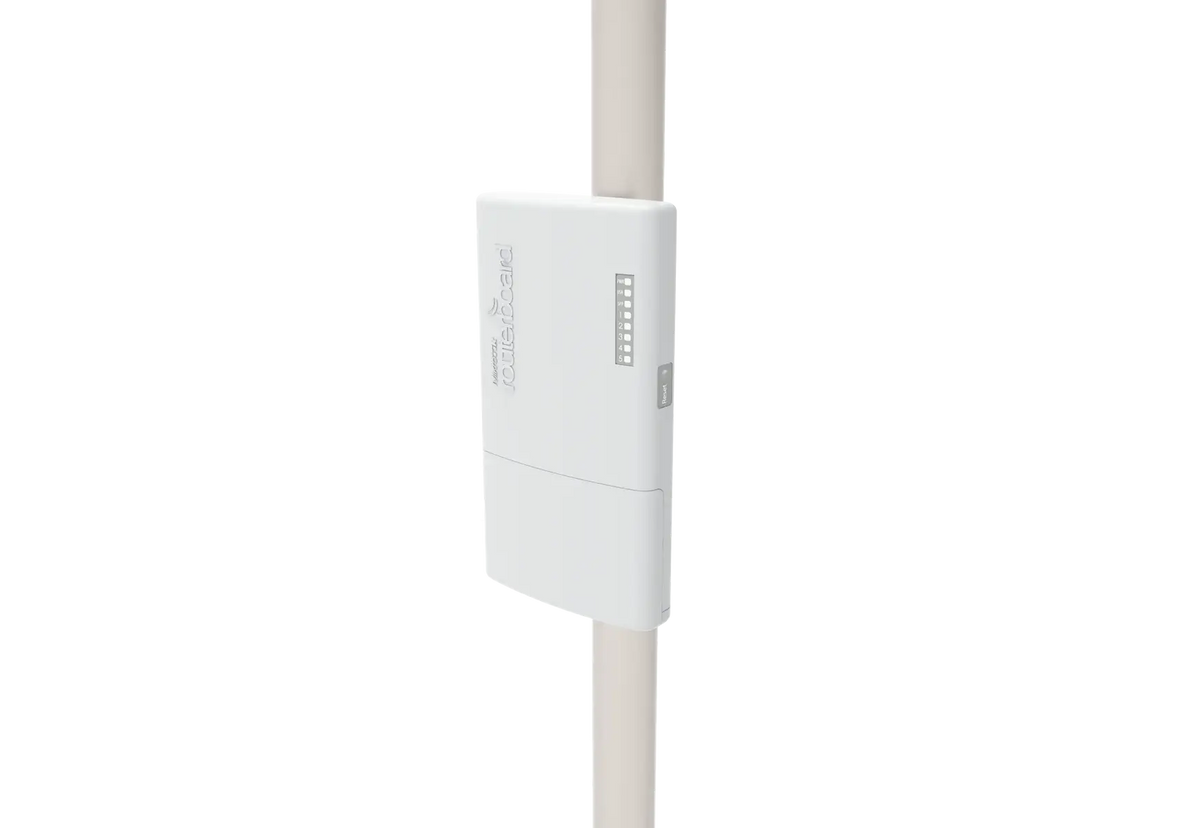

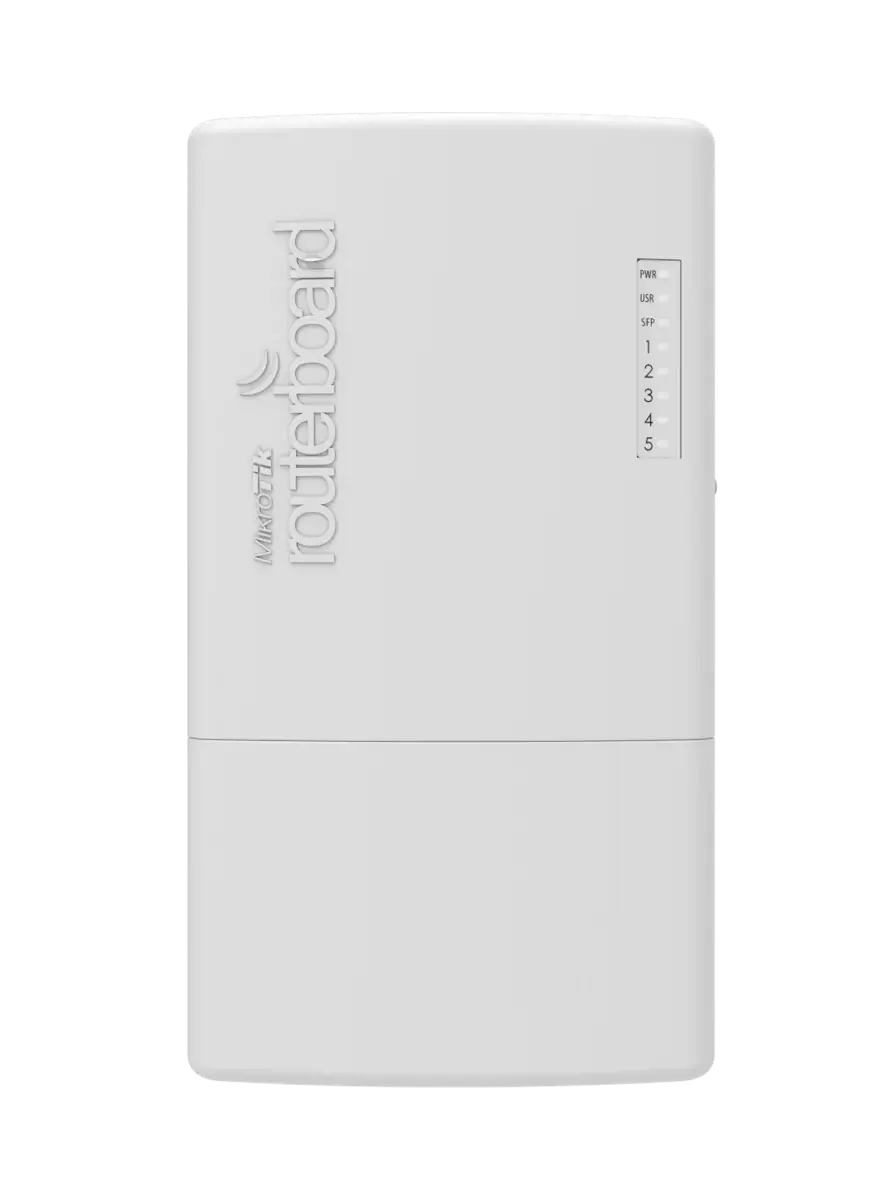

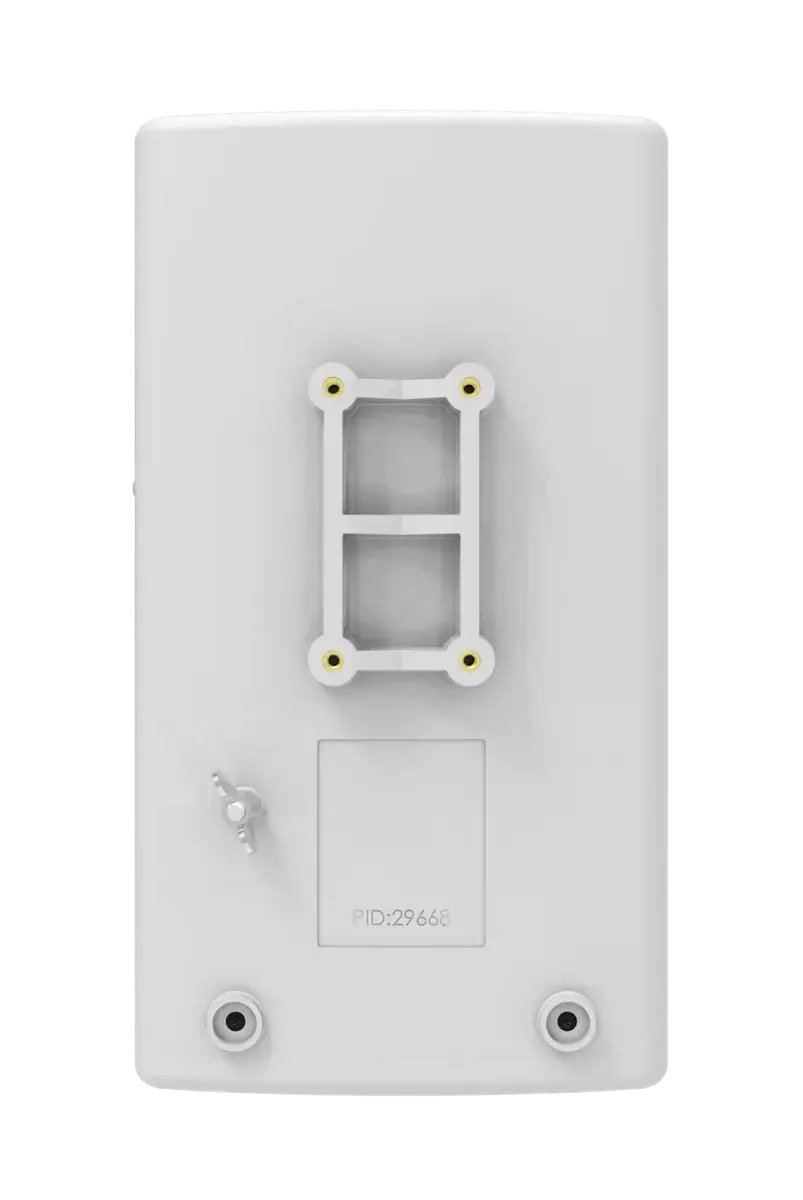

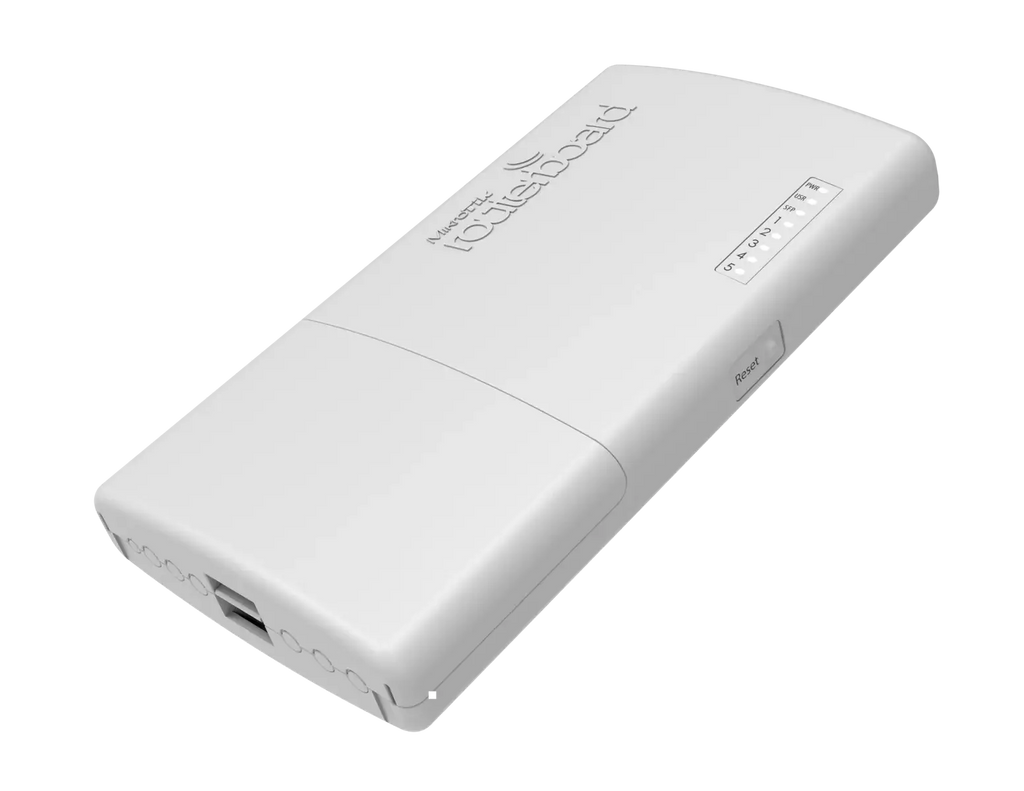

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.



Specifications

Details
Product code RB960PGS-PB
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model QCA8337
Dimensions 125 x 52 x 225 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 54 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 2 A

Ethernet

Details
10/100/1000 Ethernet ports 5

Fiber

Details
SFP ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
