UBIQUITI

ViewPort PoE

ViewPort PoE

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

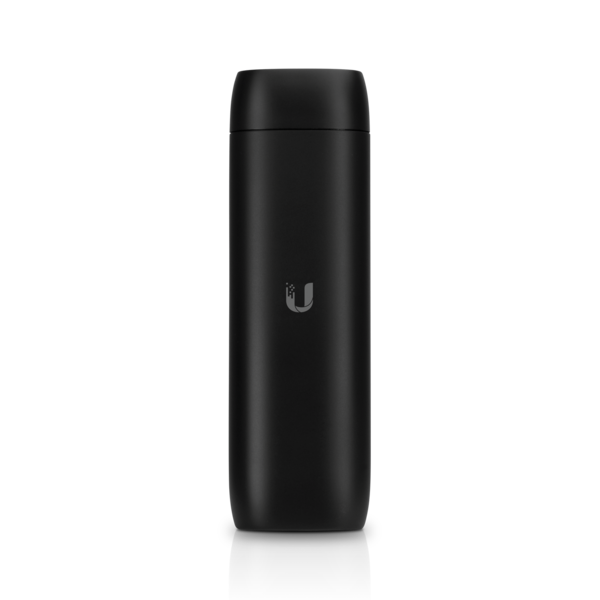

The UniFi Protect ViewPort allows you to view your UniFi Protect camera feeds on an HDMI display.

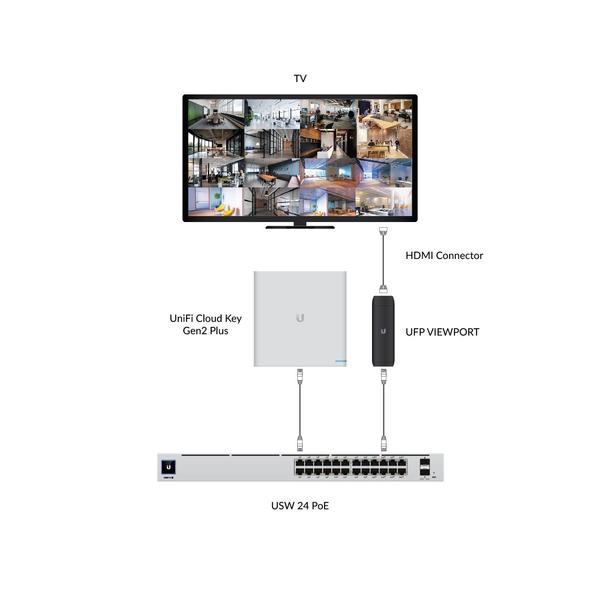

It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offers 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.

Features:
View Unifi Protect cameras on an HDMI display
Display up to 16 IP cameras simultaneously
Easy setup with UniFi Protect System
Powered by Power over Ethernet up to 1 Gbps
HDMI video output up to 4K @ 30 fps
Mechanical
Dimensions

157 x 52 x 37 mm (6.18 x 2.05 x 1.46")

Weight

Without Mount: 230 g (8.11 oz)

With TV Mount: 252 g (8.89 oz)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Hardware
Processor

The Qualcomm® QCS605 SoC

Memory Information

4GB Low Power DDR4X

Management Interface

UniFi Protect

Networking Interface

10/100/1000 Mbps RJ45 Ethernet Port

Max. Power Consumption

9.5W

Power Method

802.3af PoE

Power Supply

802.3af PoE

ESD/EMP Protection

Air: ± 8kV, Contact: ± 4kV

Operating Temperature

0 to 40° C (32 to 104° F)

Operating Humidity

20 to 80% Noncondensing

Button

Factory Reset

Bluetooth

5.0

Antennas

Bluetooth

Antenna Gain

2 dB

Certifications

FCC, IC, CE
