WiFi BaseStation XG

Large venue quad-radio 802.11ac Wave 2 Access Point with powerful beamforming antenna. Ideal for high-density deployments.

Expand your 10-Gigabit network with the UniFi WiFi BaseStation XG, part of the Ubiquiti UniFi Enterprise WiFi System.

Features:

10Gigabit Ethernet Support
4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
Triple 5 GHz 802.11ac Wave 2 Radios
5.2 Gbps Combined Radio Rate in 5 GHz
Dedicated Security Radio with Persistent Threat Management
1,500 Client Association Limit
802.3bt Power Injector Included

Mechanical
Dimensions (Without Mount)	471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713")
Weight (Without Mount)	3.2 kg (7.055 lb)
Networking Interface	(1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port
Button	Reset
LED	RGB, Software-Controllable
Power Method	802.3bt PoE
Power Supply	50VDC, 1.2A Gigabit PoE
Power Save	Supported
Beamforming	Supported
Max. Power Consumption	31W
Supported Voltage Range	44-57VDC
Max. TX Power	25 dBm
MIMO	(3) 4 x 4
Operating Frequency	5 GHz
Antenna	Integrated Dual-Mode Antenna Array
Antenna Gain Small Cell Large Cell	15 dBi 10 dBi
Antenna Beamwidth Small Cell Large Cell	50° 90°
Wi-Fi Standards	802.11 a/n/r/k/v/ac/ac-wave2
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

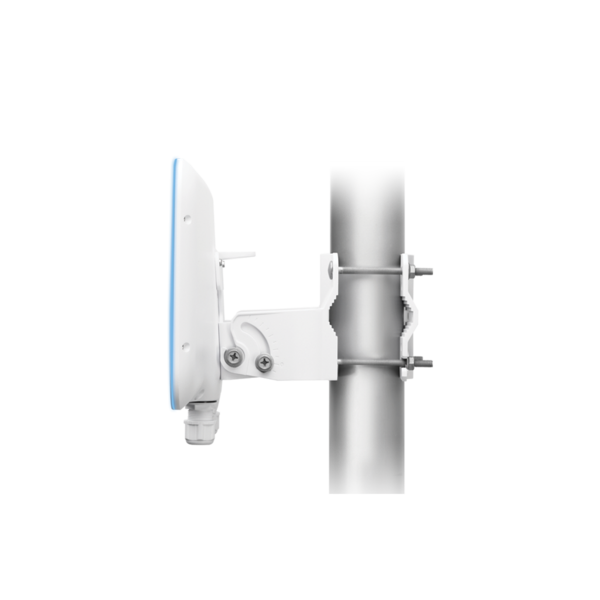

Mounting	VESA-Compatible Mount, Pole/Wall (Brackets Included)
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
Dust and Water Resistance	IP67
Certifications	CE, FCC, IC
Advanced Traffic Management
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	1500
Supported Data Rates (Mbps)
Standard	Data Rates
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
