UBIQUITI

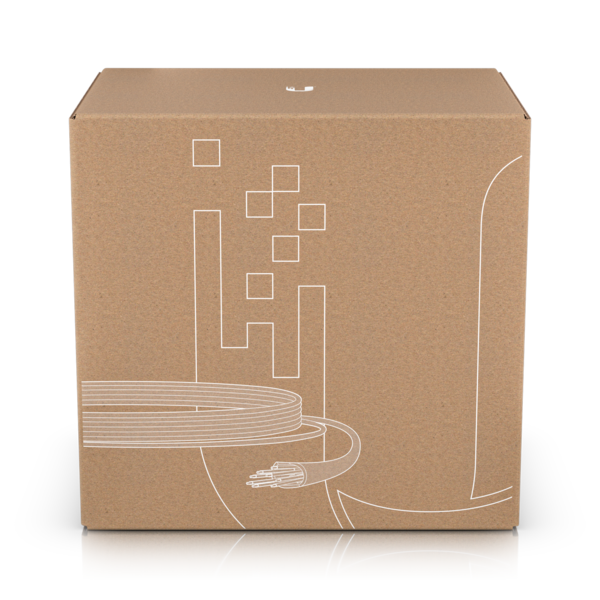

Cable Cat6 CMP Rating

Cable Cat6 CMP Rating

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
U-Cable-C6-CMP
Shipping calculated at checkout.

Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling

The U-Cable-C6-CMP is a Category 6 UTP cable that supports speeds up to 1Gbps with its 23 AWG solid copper, twisted pair conductor. The conductor's small diameter, combined with the cable's anti-crosstalk divider, isolates and protects signals from interference. The U-Cable-C6 is also a CMP cable with a fire-resistant jacket that ensures full fire prevention, which is especially critical in plenum spaces where air is circulated to facilitate building HVAC. Category 6 Ethernet connectors are recommended to accommodate the conductor's size and optimize its performance.

Features:
Category 6 Unshielded Twisted Pair (UTP) cable
Communications Multipurpose Cable, Plenum (CMP)-rated, fire-resistant jacket
1,000 ft (305 m)
23 AWG solid copper conductor pair
Anti-crosstalk divider
For 1000BASE-T Ethernet applications
Mechanical
Box Dimensions 474 x 346 x 458 mm (18.7 x 13.6 x 18")
Box Weight 14.75 kg (32.52 lb)
Cable Length 305 m (1000 ft)
Cable Color White
Cable Type Category 6
Shielding Type UTP
Flame Rating CMP
Conductor Wire Gauge 23 AWG
Conductor Type Solid Bare Copper
Jacket Material Low Smoke Flame Retardant PVC
Jacket Diameter 5.6 ± 0.2 mm
Bend Radius Min. 22.4 mm
Pulling Tension Max. 110 N
Storage Temperature -20 to 75°C (-4 to 167°F)
Installation Temperature 0 to 60°C (32 to 140°F)
Operation Temperature -20 to 60°C (-4 to 60°F)
Anti-Crosstalk Divider Yes
Ripcord Yes
Data Rate 10/100/1000 Base-T
Reference Bandwith Up to 600 MHz
Standards Electrical Transmission:
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1)

Flame Test: NFPA 262 (CMP)

Material and Construction:
UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)
