MIKROTIK

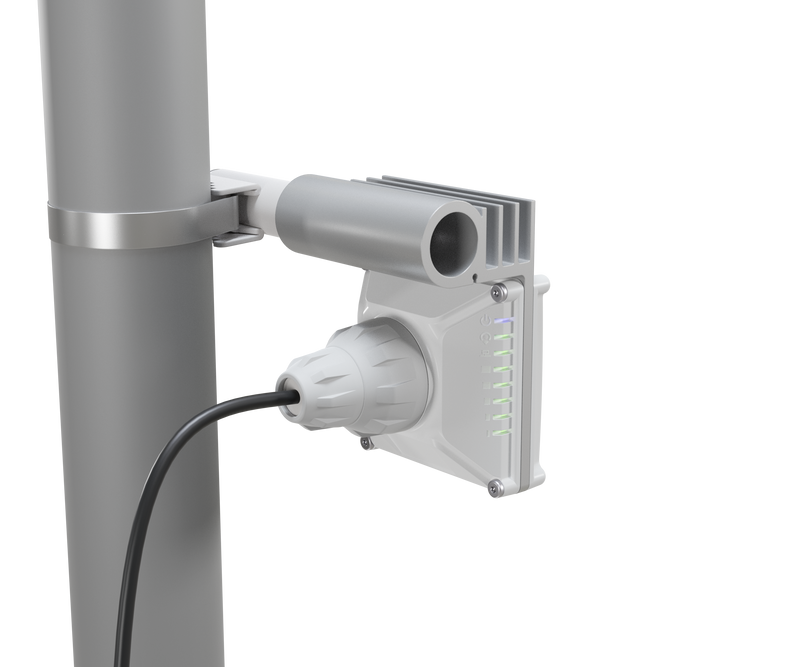

CubeSA 60Pro ac (US Version)

CubeSA 60Pro ac (US Version)

Regular price $181.80 USD
Regular price $200.99 USD Sale price $181.80 USD
Sale Call for Availability
CubeG-5ac60ay-SA-US

There are 10 units left in stock.

Shipping calculated at checkout.

Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

If you need to connect multiple devices – take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

Forget about downtime with the automatic 5 GHz backup connection

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

More durability, less unwanted attention

We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

Specifications

Details
Product code CubeG-5ac60ay-SA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 115 x 211 x 90 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 64 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 13 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-48 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 11.5
Wireless 5 GHz chip model IPQ4019
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
GNSS standards GPS

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 22 -93
54MBit/s 18 -74
MCS0 22 -93
MCS7 17 -71
MCS9 15 -68
