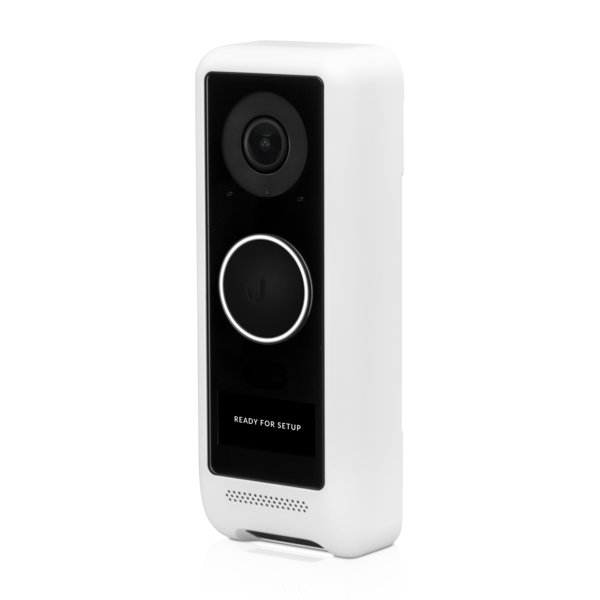

Doorbell G4

UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.

The camera features a high-quality 5MP sensor with enhanced night vision. Image streams can be viewed in up to 1600x1200 (2MP) HD at 30 FPS. UniFi Protect G4 Doorbell includes a PIR sensor for instant motion detection alerts. Integration with UniFi Protect provides an easy-to-use interface.

Features:
1600x1200 (2MP) HD stream with night vision
Integrated entrance lighting
Real-time two-way audio with echo cancellation
Built-in display
Dual-band 802.11ac Wi-Fi
PIR motion detection sensor
Weather-resistant
UniFi Protect integration
View Compatible Chimes
Note: UniFI Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine PRO or UniFi Protect Network Video Recorder

UVC-G4-Doorbell
Dimensions	118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02")
Weight Without Mount With Flat Wall Mount With 20° Wedge Mount	130 g (4.59 oz) 178 g (6.28 oz) 200 g (7.05 oz)
Enclosure Material	Polycarbonate
Mount Materials	Flat Wall Mount: Aluminum Alloy 20° Wedge Mount: Polycarbonate
Weatherproofing	IPX4
Optics
Sensor	5 MP CMOS Sensor
Lens	Fixed Focal Length
View Angle	H: 138°, V: 114°, D: 155°
Night Mode	Built-in IR LED Illumination and IR Cut Filter
Video
Video Compression	H.264
Resolution	1600 x 1200 (4:3)
Maximum Frame Rate	30 FPS
System
Processor Specs	Ambarella Advanced Image Processing SoC
Memory Information	512 MB
Mangement Interface	UniFi Protect
Networking Interface	802.11 ac Wi-Fi
Flash Memory Support	256 MB
Max. Power Consumption	12VA
Power Requirements	16-24VAC, 20VA
Link/Activity LED	Yes
Button	Factory Reset
Mounting	Flat Wall/20° Wedge (Kits Included)
Operating Temperature	-10 to 40º C (14 to 104º F)
Operating Humidity	0 to 90% Noncondensing
Certifications	FCC, IC, CE
Audio
Microphone	Yes (Can be Disabled in Software)
Speaker	Yes
Software
Controller Software	UniFi Protect
Mobile Apps	UniFi Protect iOS and Android
Compatible Mechanical Chimes
Manufacturer Broan-NuTone Broan-NuTone Heath Zenith Craftmade Broan-NuTone Newhouse Hardware	Model LA126WH LA11WH SL-2735 CTPW-RG LA39WH CHM3D
Compatible Digital Chimes
Manufacturer Broan-NuTone IQ AMERICA IQ AMERICA	Model LA600WH DW-2850 DW-2840
