UBIQUITI

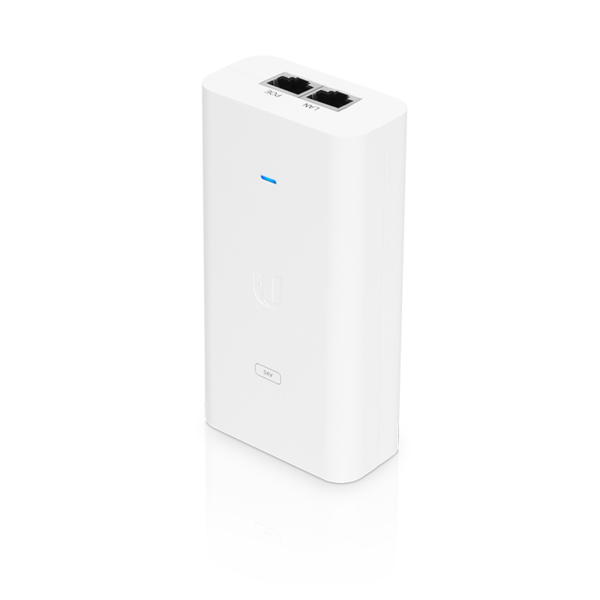

EdgePoint PoE Injector, 54V 80W
EdgePoint PoE Injector, 54V 80W
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
| Model | POE-54-80W |
| Dimensions | 123 x 65 x 34 mm (4.84 × 2.56 × 1.34”) |
| Weight | 299 g (10.55 oz) |
| Output Voltage | 54VDC @ 1.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.8A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <80A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 87+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 100 kHz Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | – |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |

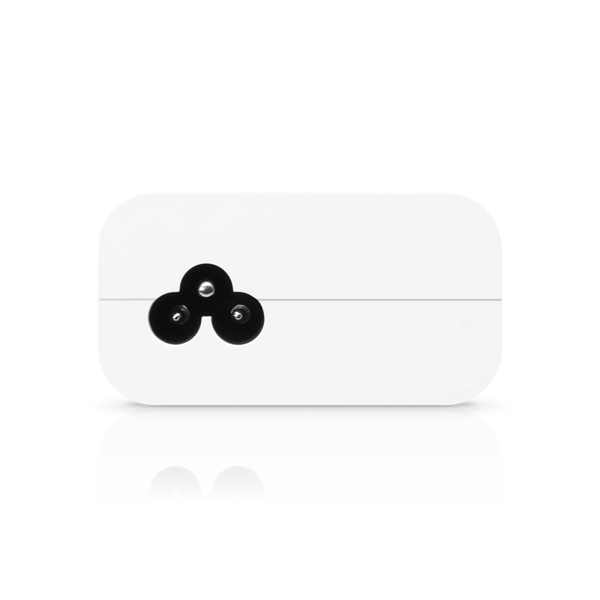

| AC Connector | IEC-320 C6 |

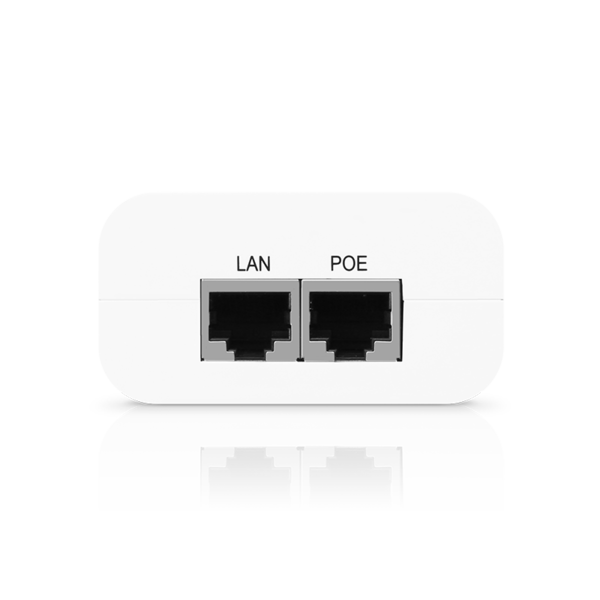

| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |

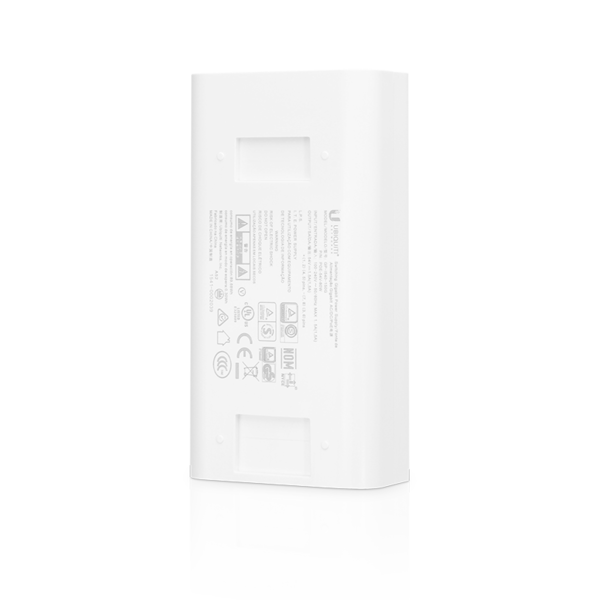

| Certifications | CE, FCC, IC, UL |
