UBIQUITI

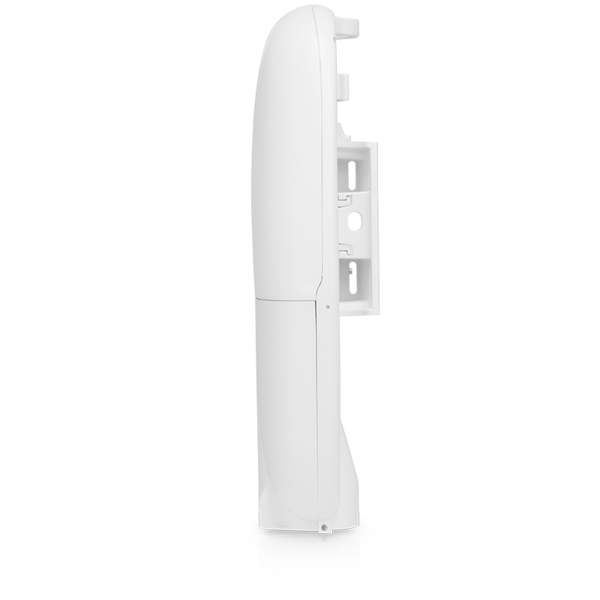

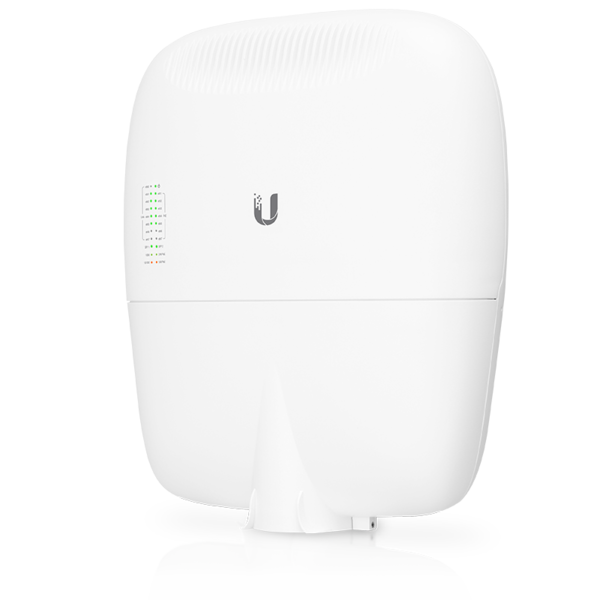

EdgePoint R8

EdgePoint R8

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
EP-R8
Shipping calculated at checkout.

Application-specific WISP control point with (6) Gigabit RJ45 ports and (2) RJ45/SFP hybrid ports.

Ubiquiti introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

Features:
Six RJ45 Ethernet ports and two combination RJ45/SFP Ethernet ports
Weatherproof Enclosure for Outdoor Use
Powerful Routing or Switching Features
Fiber Backhaul Capability
Intuitive User Interface
EP-R8
Dimensions
With Wall-Mount
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight
With Wall-Mount
3.4 kg (7.50 lb)
3.8 kg (8.38 lb)
Enclosure Characteristics Diecast Aluminum Alloy and Polycarbonate with UV Resistance
Max. Power Consumption 40W (Excludes PoE Output)
Power Input (1) DC Terminal Block
or
(2) RJ45 (PoE In and eth0)
(Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54VDC, 6A
Passive PoE Input (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In
(PoE In is DC Only, No Data)
Passive PoE Output (2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2
(5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7
Power Monitoring (1) DC Terminal Block, Input Power
(2) RJ45, PoE In and eth0, Input Power
Supported Voltage Range 56 to 42VDC
Button Reset
LEDs
System
eth0
eth1 to eth7
SFP

Power
Speed/Link/Activity
Speed/Link/Activity, PoE
Speed/Link/Activity
Ports
Serial Console Port
PoE In Port
Data Ports
(1) RJ45 Serial Port
(1) RJ45 Port
(6) 10/100/1000 RJ45 Ports
(2) 10/100/1000 RJ45/SFP Combination Ports
Processor Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory 2 GB DDR3-1600 RAM
Code Storage 4 GB
Certifications CE, FCC, IC

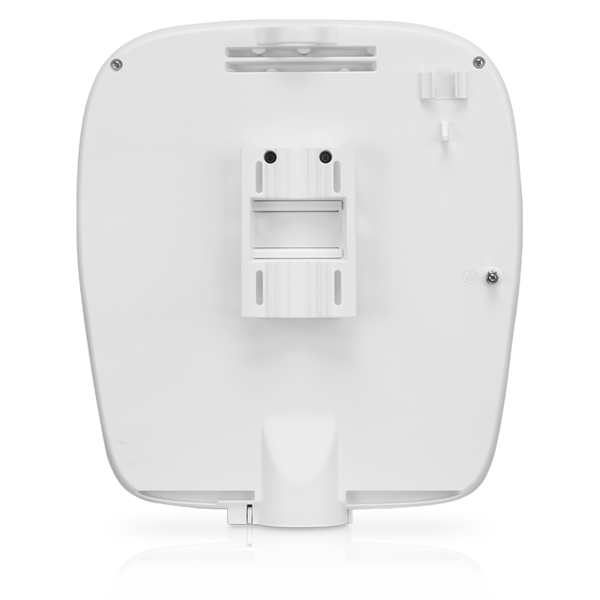

Pole/Wall Mount Yes
Wind Loading 153 N @ 200 km/h (34 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 to 90% Noncondensing
