UBIQUITI

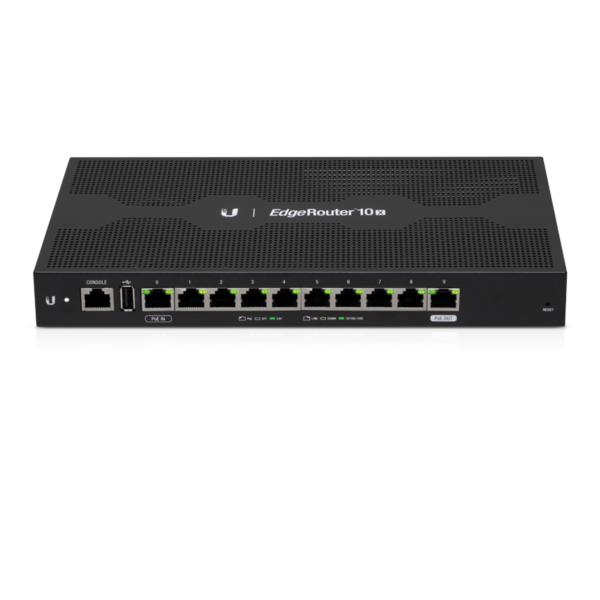

EdgeRouter 10X

EdgeRouter 10X

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
ER-10X
Shipping calculated at checkout.

Gigabit router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, a PoE input, and PoE passthrough port.

Featuring top price/performance value, the EdgeRouter™ 10X is an advanced Gigabit Router with PoE flexibility. Ten Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 10. The EdgeRouter 10X supports Layer-2 switching with one internal switch. For scalable configuration, use EdgeOS® or UISP.

Features:
(10) Gigabit RJ45 Ports
Support PoE Passthrough on Port 10 (software-selectable)
Powered by 24V Passive PoE or External AC/DC Adapter
Extended Input Voltage Range up to 30V
Dual-Core, 880 MHz, MIPS1004Kc Processor
512 MB DDR3 RAM
512 MB NAND Flash Storage
(1) Internal Switch
Serial Console Port
Wall or rack-mountable*
* Rack-mount sold separately
EdgeRouter 10X
Dimensions 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
Weight 600 g (1.32 lb)
Max. Power Consumption 8W (Excludes PoE Output)
Power Method External AC/DC Power Adapter, 24W
(24V, 1A) (Included)
24V Passive PoE
Power Supply External AC/DC Adapter
Supported Voltage Range DC: 9 - 30VDC
24V Passive PoE: 20 - 30V
Button Reset
LEDs Data Ports: Link/Activity, PoE (Port 9 Only)
Interfaces Management:(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0)
Networking: (10) 10/100/1000 RJ45 Ports
Layer 3 Forwarding Performance Packet Size: 64 Bytes - 260,000 pps
Packet Size: 1518 Bytes or Larger - 1 Gbps (Line Rate)
Processor Dual-Core 880 MHz, MIPS1004Kc
System Memory 512 MB DDR3 RAM
On-Board Flash Storage 512 MB NAND
Mounting Wall, Rack (With optional Rack Mount Kit, model ER-RMKIT)
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
PoE
PoE Interfaces PoE In: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
PoE Out: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
Passive PoE Max. Wattage Per Port 15W (24V, 0.63A)
Passive PoE Output DC/PoE Passthrough
