UBIQUITI

EdgeRouter 12

EdgeRouter 12

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
ER-12
Shipping calculated at checkout.

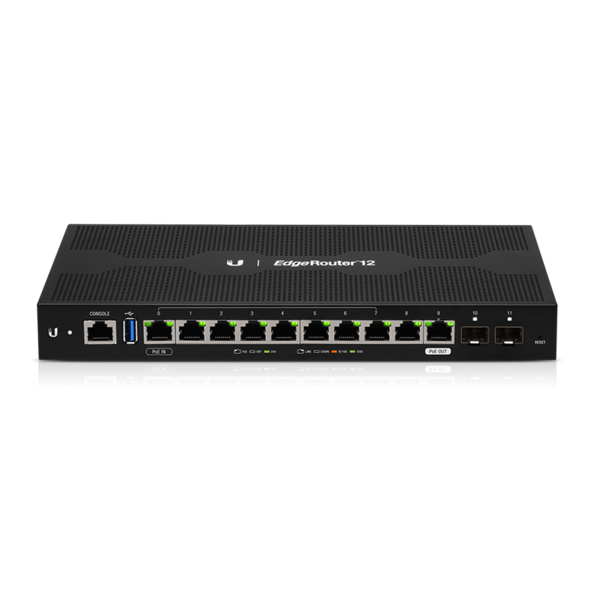

High-performance router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, and (2) SFP ports.

The EdgeRouter 12 is a high-performance Gigabit Router with PoE flexibility. With increased performance over the previous generation of routers, the EdgeRouter 12 delivers up to 3.4 million pps for 64-byte packets. Ten Gigabit Ethernet ports offer copper connectivity, while two SFP ports offer fiber connectivity. The EdgeRouter 12 supports Layer-2 switching and scalable configuration using EdgeOS or UISP.

Compatible with EdgeMAX Universal Rack-mount Kit - Sold separately

EdgeRouter 12
Dimensions 268.1 x 136.5 x 31.1 mm
(10.55 x 5.37 x 1.22")
Weight 700 g
(1.54 lb)
Max. Power Consumption 20W (Excludes PoE Output)
Power Method External AC/DC Power Adapter, 24W (24V, 1A) (Included)
24V Passive PoE
Power Supply External AC/DC Adapter
Passive PoE
Voltage Range
Max. Wattage per Port

DC/PoE Passthrough
20W (24V)
Supported Voltage Range 9 - 30VDC
Button Reset
LEDs
System
Data Ports
SFP Data Port
Power
Speed/Link/Activity;PoE (Ports 0 and 9 only)
Link/Activity
Processor 4-Core 1 GHz MIPS64
System Memory 1 GB DDR3 RAM
On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Interfaces
Management

Networking

(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0)
(10) 10/100/1000 RJ45 Ports
Port 0 Supports PoE IN;
Port 9 Supports PoE Out
(2) 1 Gbps SFP Ports
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
