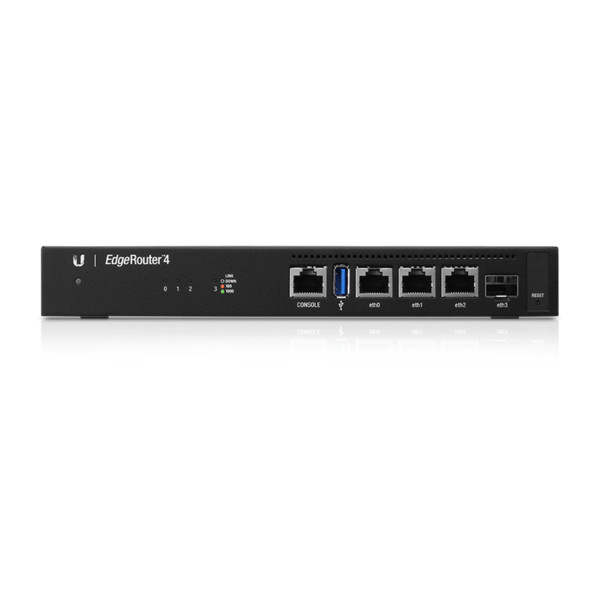

EdgeRouter 4

Fanless router with a four-core, 1 GHz MIPS64 processor, (3) Gigabit RJ45 ports, and an SFP port.

The all-new EdgeRouter 4 brings “high-performance at disruptive pricing” to a new level. With a 50% increase in performance compared to the EdgeRouter Pro, the EdgeRouter 4 delivers the performance your network needs. Paired with our feature-rich EdgeOS makes this a versatile tool in both Carrier-Grade and Enterprise networks.

Features:
(3) Gigabit RJ45 Ports and (1) SFP Port
4-Core 1GHz MIPS64 Processor
Internal PSU
Fan-less
Desk, wall, and rack-mount options*

* Rack-mount sold separately

EdgeRouter 4
Dimensions	229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22")
Weight	795 g (1.75 lb)
Max. Power Consumption	13W
Power Method	Universal AC Power Cord (C13)
Power Supply	Internal AC/DC Power Adapter, 30W DC
Supported Voltage Range	100-240VAC, 50/60 Hz Universal Adapter
Button	Reset
LEDs Data Ports SFP Data Port	Speed/Link/Activity Link/Activity
Processor	4-Core 1 GHz MIPS64
System Memory	1 GB DDR3 RAM
On-Board Flash Storage	4 GB eMMC, 8 MB SPI NOR
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Management Interfaces	(1) RJ45 Serial Port (4) Ethernet Ports (Default eth0)
Networking Interfaces	(3) 10/100/1000 RJ45 Ports (1) 1 Gbps SFP Port
Operating Temperature	-10 to 50° C (14 to 122° F)
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC
