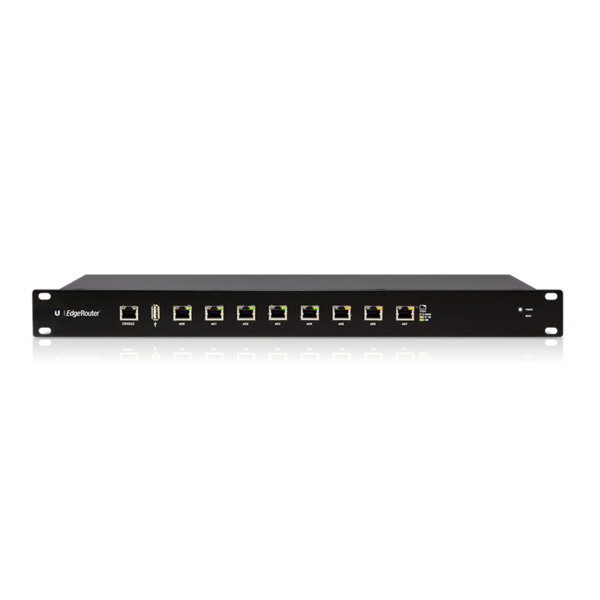

EdgeRouter 8

The EdgeRouter™ offers 2 million packets per second over its eight independent, Gigabit routing ports.

Features:
(8) Gigabit routing ports
2 million packets per second for 64-byte packets
8 Gbps for packets 512 bytes or larger in size
Rack-mountable*
*Rack-mountsold separately

EdgeRouter
Dimensions	484 x 164 x 44 mm (19.06 x 6.46 x 1.73 in)
Weight	2.3 kg (5.07 lb)
Max. Power Consumption	35 W
Power Supply	Internal AC/DC Power Adapter, 60 W (24V, 2.5A)
Power Input	110 - 240VAC
Buttons	Reset
Networking Interface	Serial Console Port: (1) RJ45 Serial Port Data Ports: (8) 10/100/1000 Ethernet Ports
Layer 3 Forwarding Performance	Packet Size - 64 Bytes: 2,000,000 pps Packet Size - 512 Bytes or Larger: 8 Gbps (Line Rate)
Processor	Dual-Core 800 MHz, MIPS64 with Hardware Acceleration for Packet Processing
Memory	2 GB DDR3 RAM
Flash Memory Support	4 GB
Certifications	CE, FCC, IC
Rackmount	Yes
Operating Temperature	-10 to 45° C (14 to 113° F)
Operating Humidity	10 - 90% Noncondensing
