UBIQUITI

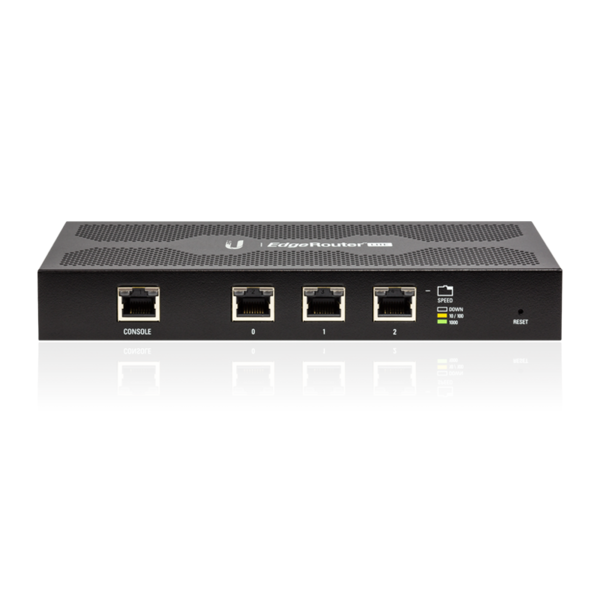

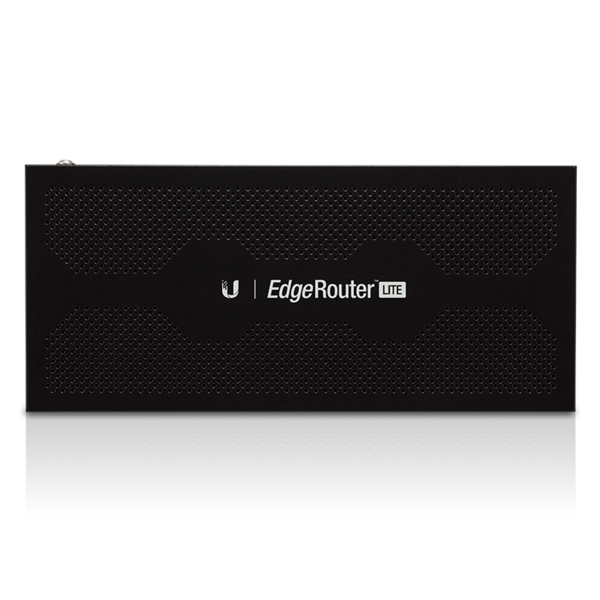

EdgeRouter Lite

EdgeRouter Lite

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
ERLite-3
Shipping calculated at checkout.

The EdgeRouter™ Lite delivers 1 million packets per second routing performance in a compact and affordable unit.

Features:
(3) Gigabit routing ports
1 million packets per second for 64-byte packets
Silent, fan-less operation
Compact, durable metal casing

EdgeRouter
Dimensions 200 x 90 x 30 mm (7.87 x 3.54 x 1.18 in)
Weight 345 g (12.17 oz)
Max. Power Consumption 7 W
Power Supply 12VDC, 1A Power Adapter (Included)
Power Input 9 to 24VDC Supported Voltage Range
Buttons Reset
Networking Interface Serial Console Port: (1) RJ45 Serial Port
Data Ports: (3) 10/100/1000 Ethernet Ports
Layer 3 Forwarding Performance Packet Size - 64 Bytes: 1,000,000 pps
Packet Size - 512 Bytes or Larger: 3 Gbps (Line Rate)
Processor Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
Memory 512 MB DDR2 RAM
Flash Memory Support 2 GB
Certifications CE, FCC, IC
Rackmount No
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing


Support & Downloads

Brochure
Open
Quick Guide
Open


View full details
