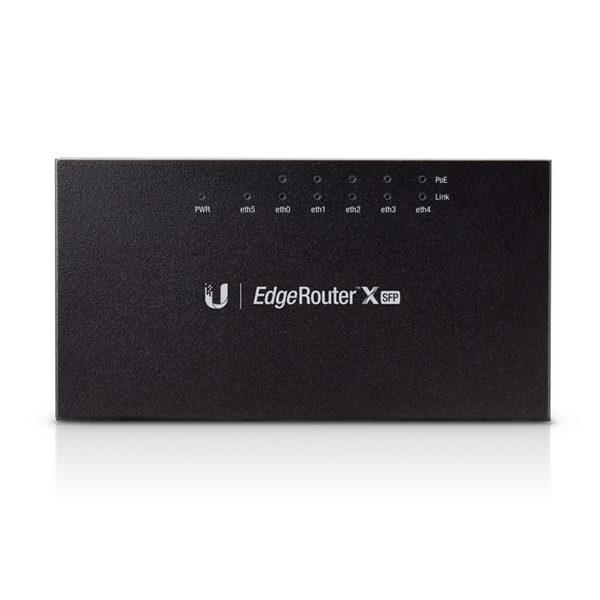

EdgeRouter X SFP

Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.

The EdgeRouter™ X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.

Features:
(5) Gigabit RJ45 ports with passive PoE support
(1) Gigabit SFP port for backhaul applications
Ports configurable for line-rate, Layer-2 switching
130 kpps for 64-byte packets
1 Gbps for 1518-byte packets

EdgeRouter
Dimensions	142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
Weight	215 g (7.58 oz)
Max. Power Consumption	5W
Power Input	24VDC, 2.5A Power Adapter (Included)
Power Supply	External AC/DC Adapter
Supported Voltage Range	9 to 26VDC
Buttons	Reset
LEDs	Power, Link/Activity (6), PoE (5)
Processor	Dual-Core 880 MHz, MIPS1004Kc
Memory	256 MB DDR3 RAM
Code Storage	256 MB NAND
Certifications	CE, FCC, IC
Wall Mount	Yes
Operating Temperature	-10 to 45° C (14 to 113° F)
Operating Humidity	10 to 90% Noncondensing
Networking Interfaces
Data/PoE Input Port	(5) 10/100/1000 RJ45 Ports
Data Port	(1) 100/1000 SFP Port
PoE with 24VDC Power Adapter
PoE Out Voltage Range	22-24VDC
Max. PoE Wattage Per Data Port	12W (24V)
Max. PoE Wattage Combined for All 5 Data Ports	50W
PoE Method	Passive
