Mimosa Networks

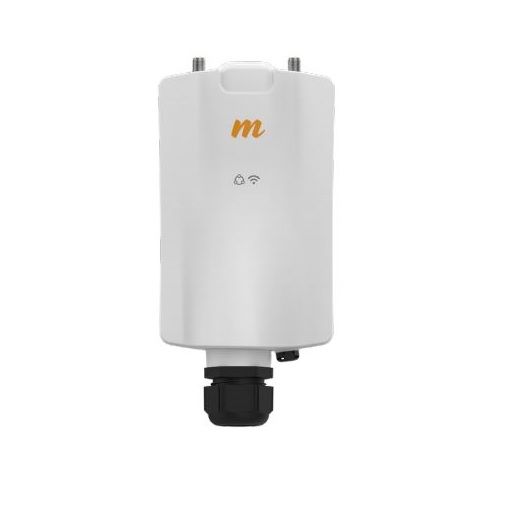

A5x-EF

A5x-EF

Regular price $266.90 USD
Regular price Sale price $266.90 USD
Sale Call for Availability
A5x-EF
Shipping calculated at checkout.

EF – Extended Frequency - 4.9-6.4 GHz, 802.11ac, 2 port PTMP access point with GPS, Connectorized. For ROW countries.
POE NOT INCLUDED

Mimosa A5x PTMP 4x4 Access Point is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP). With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse. The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.


Features
• Fiber Speeds
• Add Subscribers with Ease
• Increased Capacity at Each Site
• Ultra-High Client Capacity
• Extended Frequency Available

Performance
• Max Throughput: Up to 700 Mbps (IP)
• Client Capacity
    64 clients (WiFi Interop);
    44 clients (SRS/GPS sync)
• Wireless Protocols: WiFi Interop, Spectrum Reuse Synchronization (SRS/GPS sync)

Radio
• MIMO & Modulation: 2x2:2 MIMO OFDM up to MCS9 (256-QAM)
• Bandwidth: 20/40/80 MHz channels; Tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
• Frequency Range: 4900–6400 MHz (restricted by country of operation)
• Max Output Power: 27 dBm
• Sensitivity (MCS 0):
    -87 dBm @ 80 MHz
    -90 dBm @ 40 MHz
    -93 dBm @ 20 MH

Power
• Max Power Consumption: 9–12.9 W
• System Power Method: Passive PoE (24–56VDC)
• System Lightning & ESD Protection: 6kV
• PoE Power Supply: Passive POE compliant, 24–56VDC (PoE injector not included)

Physical
• Dimensions:
    Height: 188.4 mm (7.42” including IP67 Ethernet gland)
    Width: 75 mm (2.56”)
    Depth: 44 mm (3.35”)
• Weight: 0.30 kg (0.70 lbs)
• Enclosure Characteristics: Outdoor UV-stabilized engineered polymer with integrated mounting back
• Mounting: Single pole strap and slip on mount for comparable antennas
• Connector Type: (2) RP-SMA

Environmental
• Outdoor Ingress Protection Rating: IP67
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• Operating Humidity: 5 to 100% condensing
• Operating Altitude: 4,420 m (14,500’) maximum
• Shock & Vibration: ETS 300-019-2-4 class 4M5

Specifications
• Gigabit Ethernet: 10/100/1000-BASE-T
• Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
• Management Services: Cloud monitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; REST API for monitoring and configuration; IPv4 and IPv6
• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
• Security: WPA2; AES; RADIUS; 802.1x authorization
• VLANs: Per SSID VLANs (IEEE 802.1Q)
• QoS: Supports 4 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedence
• GPS Location: GNSS1 (GPS + GLONASS)

Product Includes
(1) Mimosa A5x-EF Radio
(1) User Manual

Product Documentation
Mimosa A5x-EF Data Sheet
