UBIQUITI

NanoSwitch

NanoSwitch

$0.00 USD
$0.00 USD
Sale Call for Availability
N-SW
Shipping calculated at checkout.

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

N-SW
Dimensions 196.4*93.5*32.4mm
7.73*3.68*1.28inch
Weight 269g
9.5oz
Enclosure Characteristics White Polycarbonate
HARDWARE
Processor RTL8367N-VB
On-Board Flash Storage 4Kbits
Total Non-Blocking Line Rate 4Gbps
TYP. Power Consumption 1.5W
Power Method Passive 24V PoE-in
Supported Voltage Range Passive 24V PoE-in

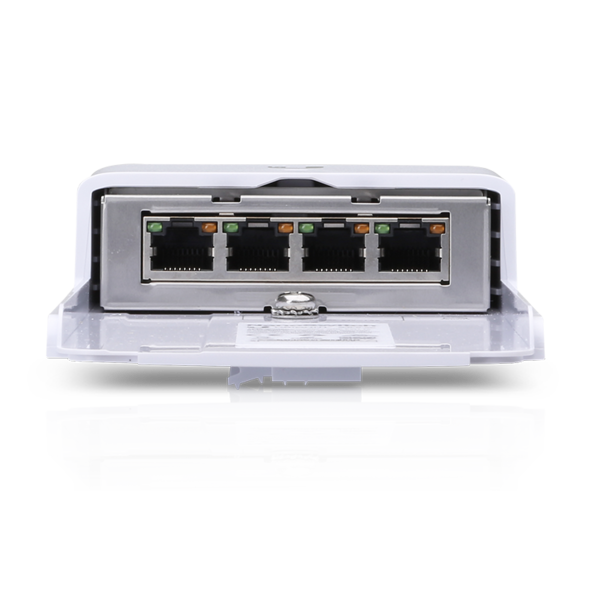

Networking Interfaces (4) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces Passive 24V PoE-in
Max PoE+ Wattage per Port by PSE 24V@1A per port / Total 24V@1.5A for three ports
Passive PoE Max wattage per port 24W per port / Total 36W for three ports
Operating Temperature -30C ~ 70C
Operating Humidity 5 to 95% Non-Condensing
