OmniTIK 5 PoE
OmniTIK 5 PoE
There are 10 units left in stock.
Share

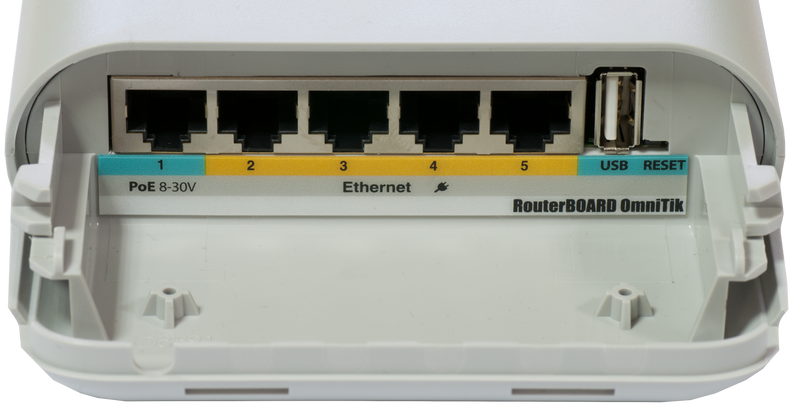

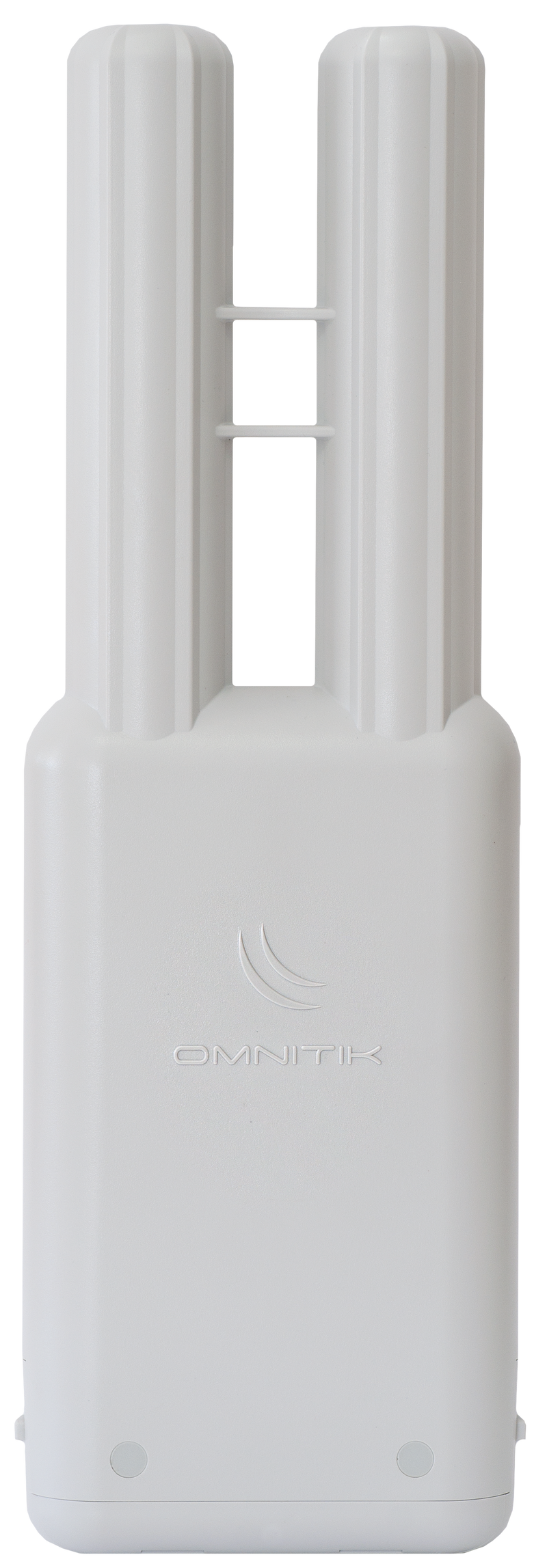

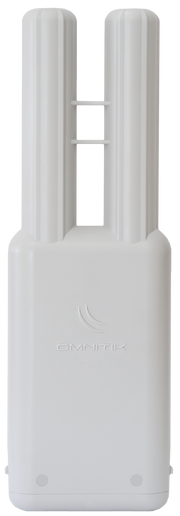

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device. Weatherproof, durable and ready to use. It has ve 10/100 Ethernet ports, PoE support and a built-in 1000mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.
LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters to worry about.

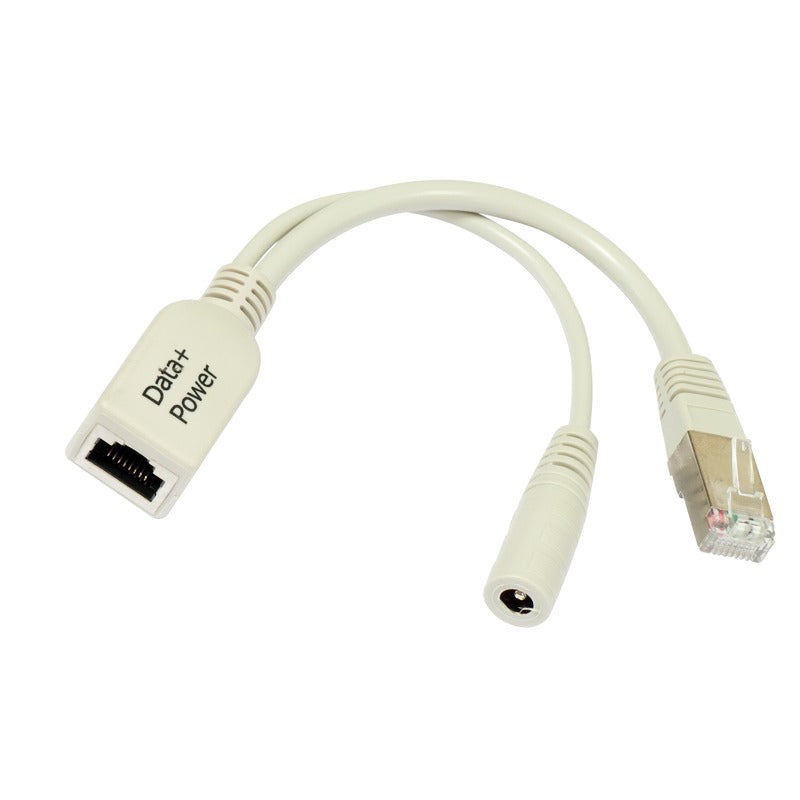

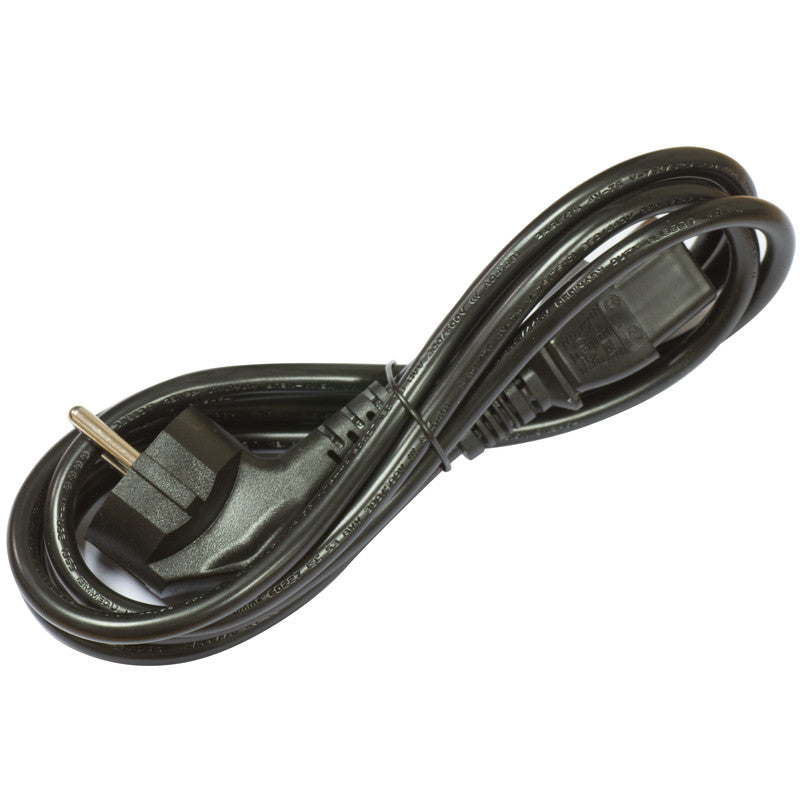

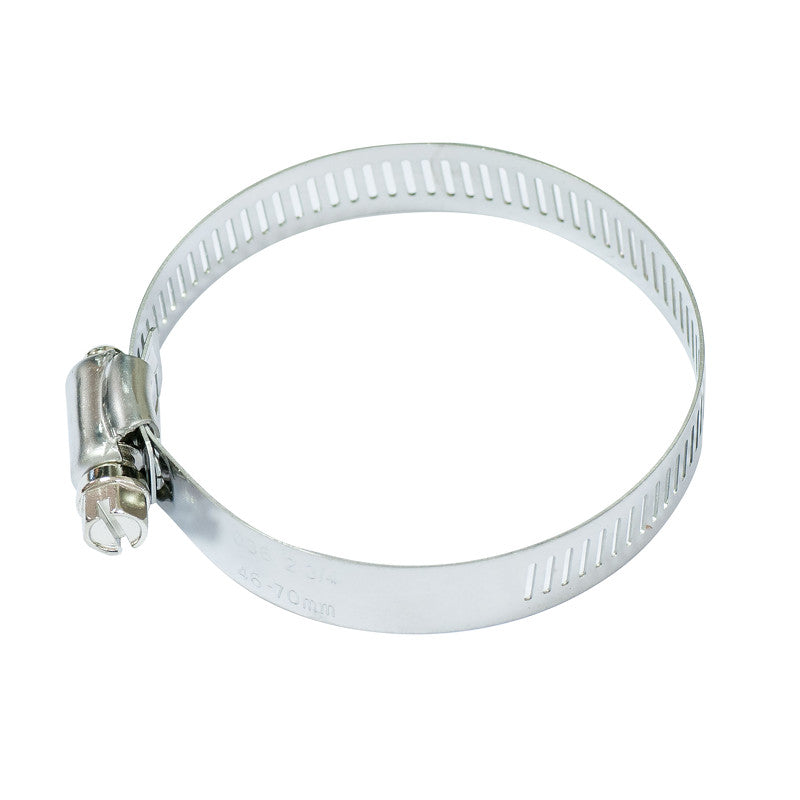

Box contains OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter
- RBOmniTikUPA-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBOmniTikUPA-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
Details | |
---|---|
Product code | RBOmniTikUPA-5HnD |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Switch chip model | AR9344 |
Dimensions | 368x125x55mm |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Suggested price | $99.00 |
Powering
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 59 W |
Max power consumption without attachments | 11 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 11-30 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether2-Ether5 |
PoE out | Passive PoE |
Max out per port output (input 18-30 V) | 1 A |
Max total out (A) | 2 A |
Wireless specifications
Details | |
---|---|
Wireless 5 GHz Max data rate | 300 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n |
Antenna gain dBi for 5 GHz | 7.5 |
Wireless 5 GHz chip model | AR9344 |
Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 5 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Beeper | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP54 |
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 30 | -96 |
54MBit/s | 27 | -78 |
MCS0 | 30 | -96 |
MCS7 | 26 | -75 |
