UBIQUITI

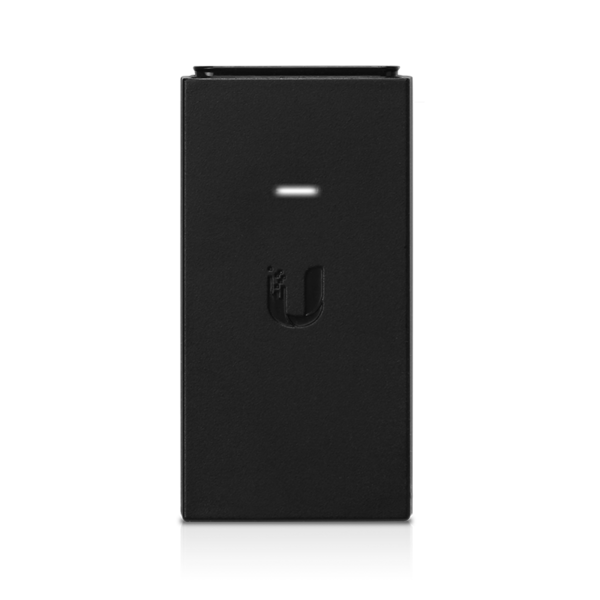

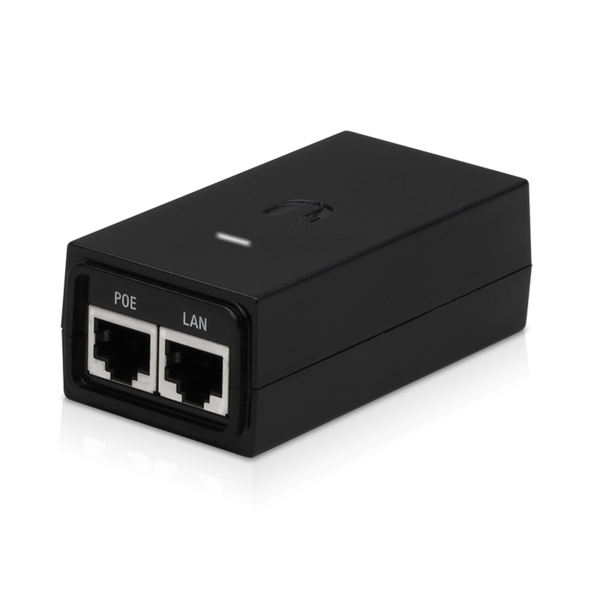

PoE Injector, 24VDC, 12W, Gbit

PoE Injector, 24VDC, 12W, Gbit

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
POE-24-12W-G
Shipping calculated at checkout.

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

POE-24-12W-G
Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight 99.4 g (3.51 oz)
Output Voltage 24VDC @ 0.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max.
Switching Frequency 50 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
