Switch Aggregation

Switch Aggregation

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
Shipping calculated at checkout.

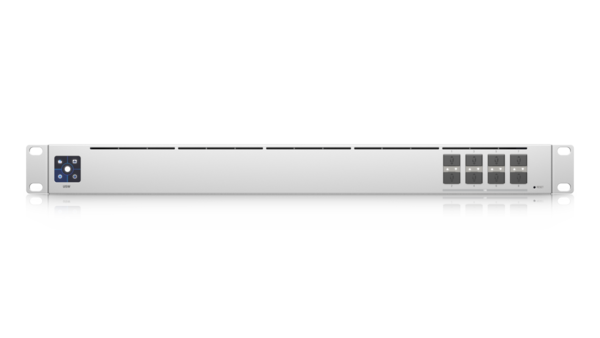

Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.

The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.


(8) 10G SFP+ Ports
160 Gbps switching capacity
1.3" Touchscreen with AR switch management
Fanless, 4.7" depth compact enclosure
1U Rackmountable (kit included)
Managed with UniFi Network Application Version: 5.14.12 or higher.
Dimensions 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")
Without Mount
With Mount

2.65 kg (5.84 lb)
2.74 kg (6.04 lb)
Enclosure Material SGCC Steel
Total Non-Blocking Throughput 80 Gbps
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps
Max. Power Consumption 30W
Power Method Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply AC/DC, Internal, 36W
Management Interface Ethernet In-Band
Modes SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
(1) Bootup Animation
Firmware Upgrade Icon
Steady White
Steady Blue

Bootup in Progress
Firmware Upgrading
Factory Defaults, Awaiting Adoption
Device is Adopted
White: 10G, 1G
