UBIQUITI

Switch Flex Utility

Switch Flex Utility

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
USW-Flex-Utility
Shipping calculated at checkout.

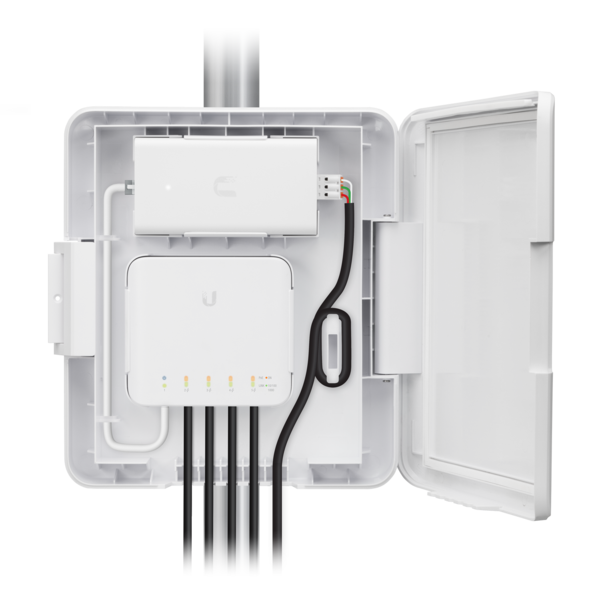

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.

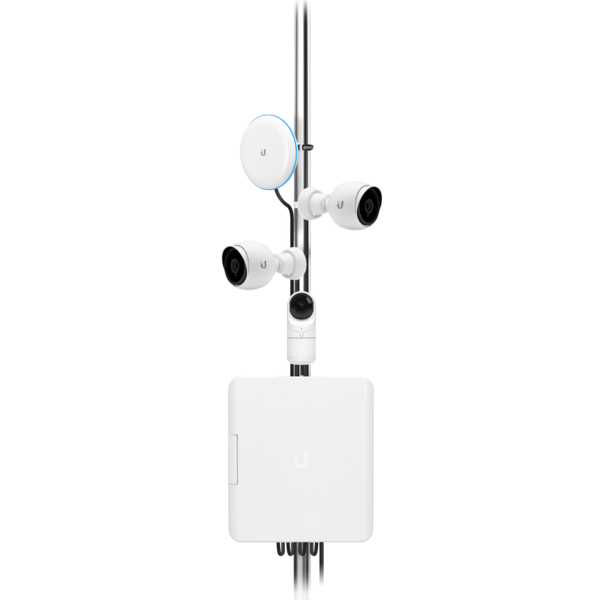

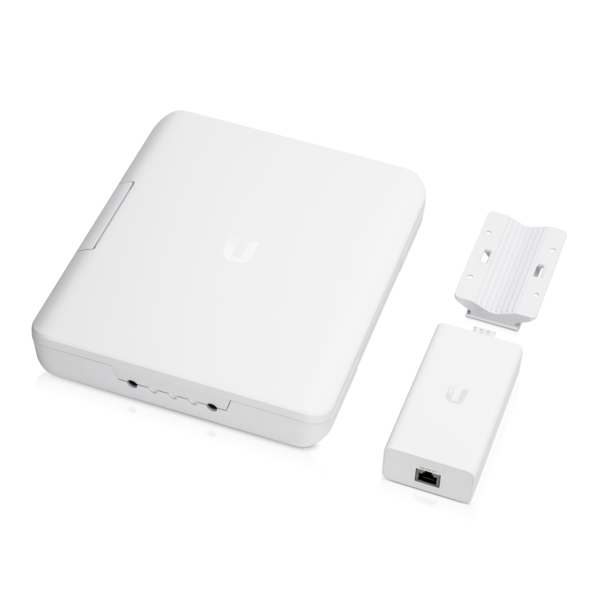

It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.

Note: UniFi Switch Flex, USW-Flex, sold separately

USW-Flex-Utility
Dimensions (with Mount) 249 x 218 x 60 mm (9.80 x 8.58 x 2.36")
Weight (with Mount) 740 g (26.10 oz)
USW-Flex-Utility 60W PoE Adapter
Dimensions 118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36")
Weight 206 g
(7.27 oz)
Output Voltage 54V, 1.11A
Rated Voltage 100-240VAC
Input Current 1.5A (Max.)
Efficiency > 86%
Output Ripple 200mVpp
Line Regulation < 1%
Load Regulation < 3%
4-Pair Powering Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating Temperature -20 to 60 ̊ C (-4 to 140 ̊ F)
Storage Temperature -30 to 70 ̊ C (-22 to 158 ̊ F)
Operating Humidity 5 to 90%, Noncondensing
Surge Immunity 4kV Difference and Common Mode


* To enable PoE output power, select Power Source PoE Injector in UniFi Application.
