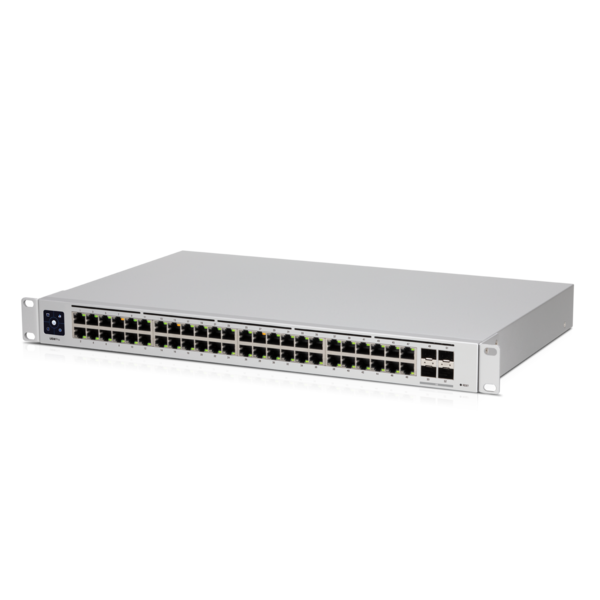

Switch Pro 48

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network application and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features:

(48) Gigabit RJ45 ports
(4) 10G SFP+ ports
Layer 2 and Layer 3 features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed with UniFi Network application

Managed with UniFi Network Application Version: 5.14.12 or higher

Mechanical
Dimensions	442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight With Brackets	4.00 kg (8.82 lb) 4.09 kg (9.02 lb)
Interfaces Networking Management	(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput	88 Gbps
Switching Capacity	176 Gbps
Forwarding Rate	130.944 Mpps
Power Method Universal Input USP RPS DC Input	100-240VAC, 50/60 Hz 11.5VDC, 5.22A
Power Supply	AC/DC, Internal, 60W
Voltage Range	100 to 240VAC
Max Power Consumption	60W
LEDs RJ45 Data Ports SFP+ Data Ports	Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 45° C (23 to 113° F)
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC
