TP-Link

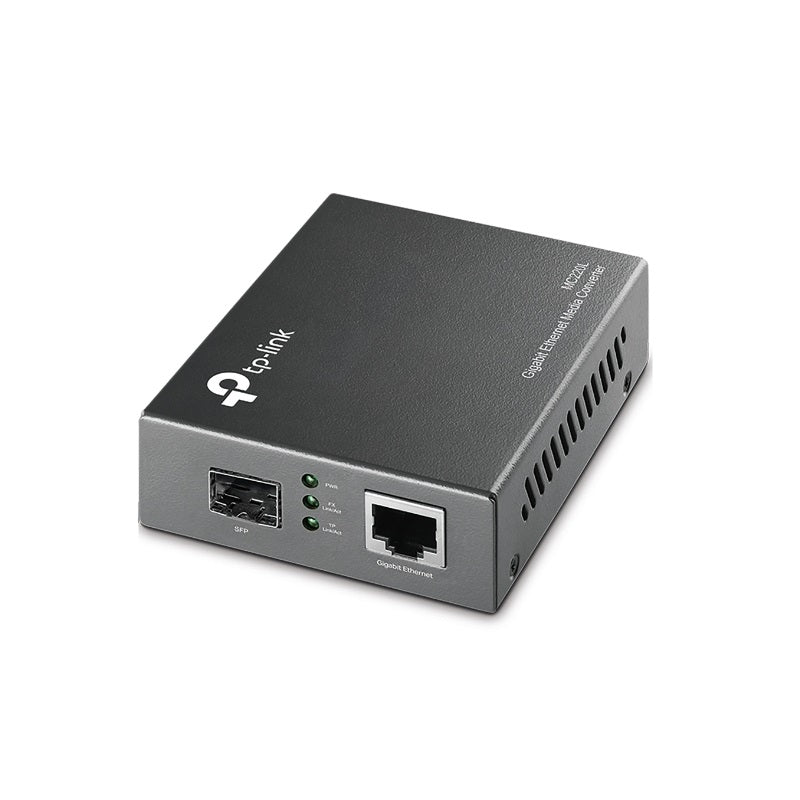

TP-LINK MC220L

TP-LINK MC220L

Regular price $13.81 USD
Regular price Sale price $13.81 USD
Sale Call for Availability
MC220L

There are 1 units left in stock.

Shipping calculated at checkout.

1000Mbps RJ45 to 1000Mbps SFP slot supporting MiniGBIC modules, switching power
adapter, chassis TL-MC1400 rack-mountable

Features:

•Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
•Supports auto MID/MID-X for TX port
•Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
•Provides switch configuration of Force /Auto transfer mode for FX port
•FX port support hot-swappable
•Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
•Easy-to-view LED indicators provide status to monitor network activity easily
•External power supply

Specification:

Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Ports
1 Gigabit SFP Slot
1 1000M RJ45 port (Auto MDI/MDIX)

Network Media
1000BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-FX Multi-mode Fiber

LED Indicators PWR, LINK, RX

Safety & Emission FCC, CE

Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Power Supply External Power Adapter
