UBIQUITI

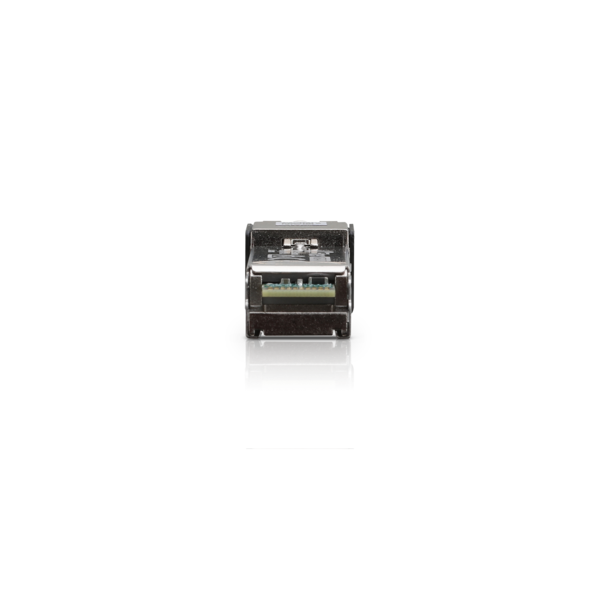

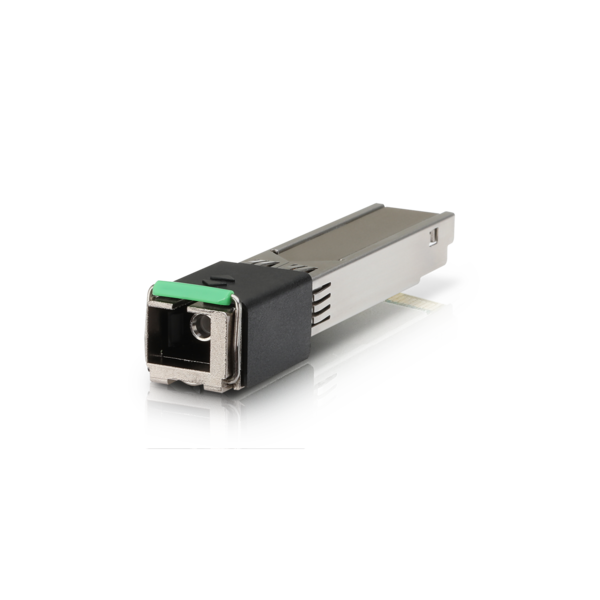

UFiber Instant Optical Transceiver

UFiber Instant Optical Transceiver

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
UF-Instant
Shipping calculated at checkout.

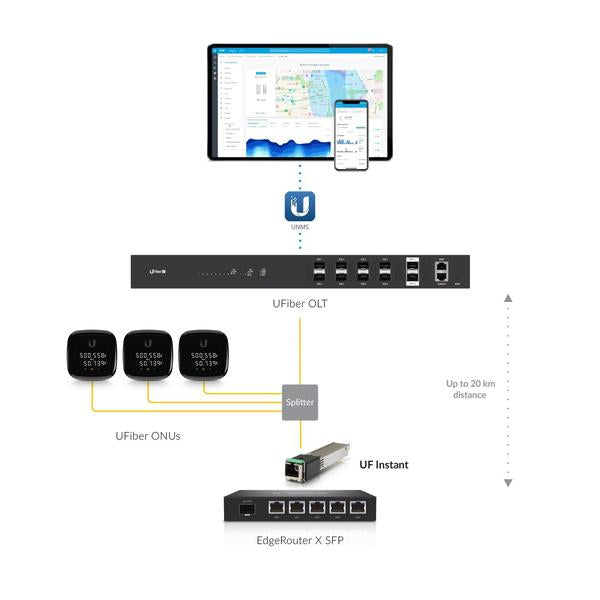

Point-to-multipoint access module with a SFP port and powerful Layer 2/3 switching capability.

Gigabit Passive Optical Network CPE

Features:
High-Performance GPON CPE
Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
Supports up to 20 km GPON Links
Powerful Layer 2/3 Management Features
(1) GPON WAN Port, SC/APC
(1) 1Gbps SFP interface
UF‐Instant
Dimensions 69.46 x 13.70 x 11.30 mm
(2.74 x 0.54 x 0.45")
Weight 30 g
(0.96 oz)
Networking Interfaces (1) SC/APC, GPON WAN
(1) SGMII Ethernet LAN
Networking Interface Speeds
GPON WAN, ITU G.984

GbE LAN

2.488 Gbps Downstream
1.244 Gbps Upstream
1 Gbps
Management Interface In‐Band Ethernet
PON
Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm
RX: ‐28 to ‐8 dBm
Power Method SFP
Power Supply 3.3V
Max. Power Consumption 2W
Supported Voltage Range 3.3V
Processor Specs MIPS 100 MHz
Memory Information 32 MB DDR
Operating Temperature ‐10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
