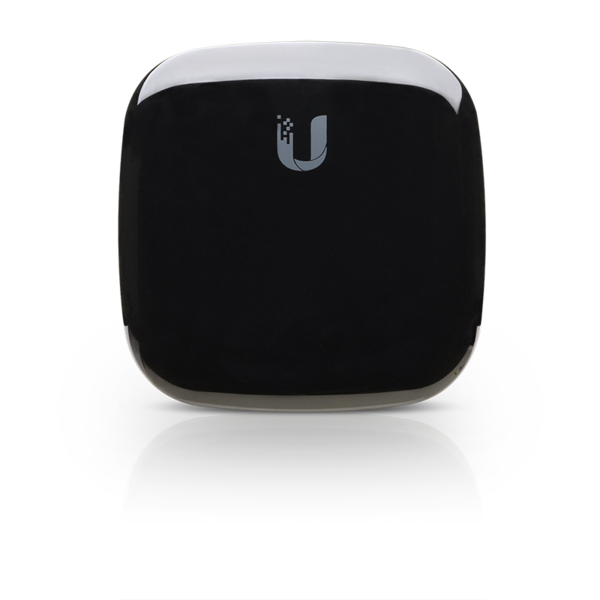

UFiber loco GPON CPE

Point-to-multipoint unit with a GPON WAN port, Gigabit RJ45 port, and Layer 2/3 switching capability.

The sleek UFiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro‑USB power.

Features:
High-Performance GPON CPE
LED diodes for easy diagnostics
Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
Supports up to 20 km GPON Links
Powerful Layer 2/3 Management Features

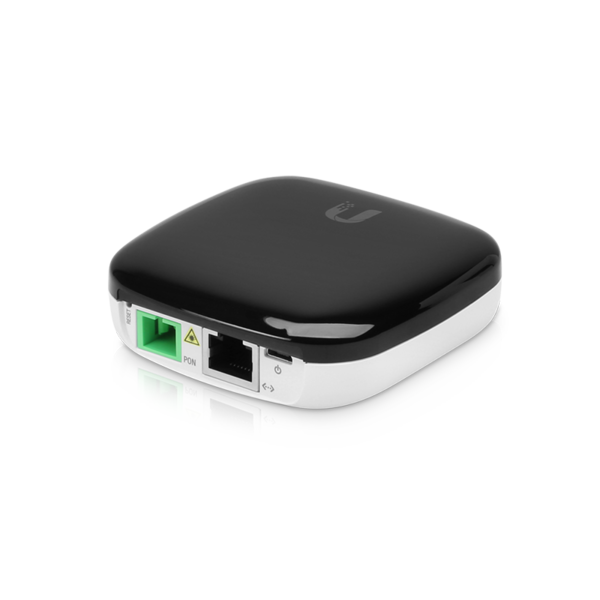

GPON WAN Port
RJ45 Gigabit LAN Port
SC/APC Fiber Connector

UF-LOC
Dimensions	76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")
Weight	77 g (2.72 oz)
Networking Interfaces	(1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN
Networking Interface Speeds	(1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps
Management Interface	In-Band Ethernet PON
Normal Optical Power Range	TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm
Power Method	Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8)
Power Supply	Micro-USB Power Adapter*: 5V, 1A
Max. Power Consumption	3.5W
Supported Voltage Range	4.7 to 5.3V
Processor Specs	MIPS-32, 240 MHz
Memory Information	128 MB DDR3
Button	(1) Reset
Operating Temperature	-10 to 45° C (14 to 113° F)
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC
