UBIQUITI

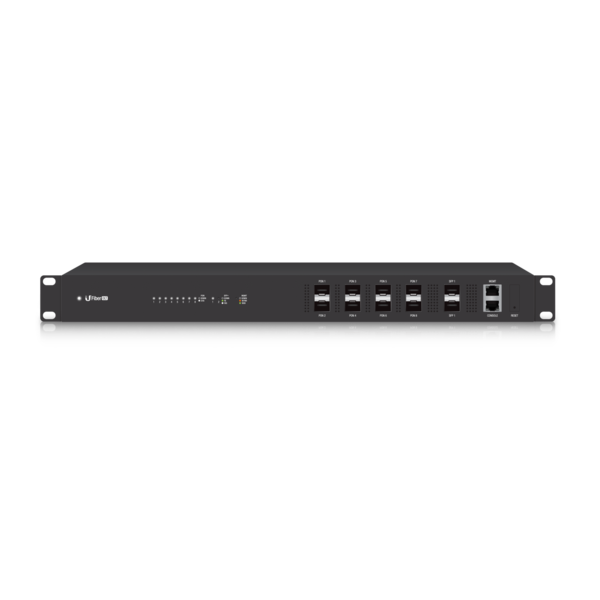

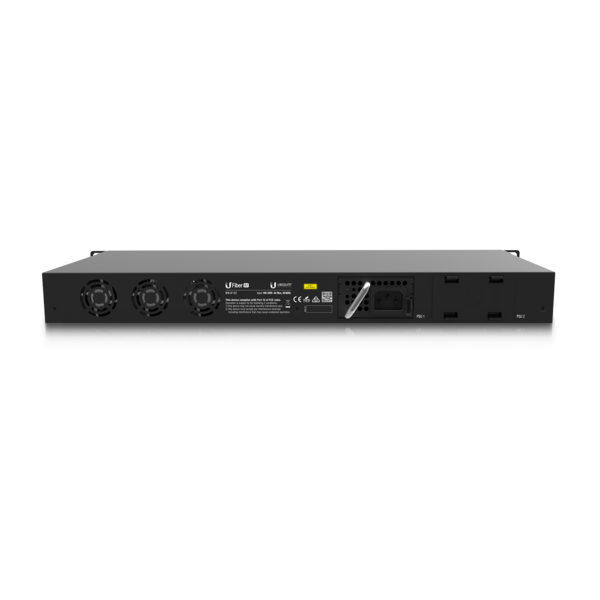

UFiber OLT Terminal

UFiber OLT Terminal

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
UF-OLT
Shipping calculated at checkout.

UISP-ready optical line terminal with (8) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.

UFiber OLT supports up to 128 ONU CPEs per GPON port with physical links of up to 20 km in distance. It also features SFP+ connectivity for uplinking. The UFiber OLT can be mounted in a 1U rack, mounted on a wall, or placed on a desktop. Management options include the Gigabit Ethernet port (out‑of‑band), RJ45 serial console port (CLI), and uplink (in‑band) – configured via the UFiber UI or UISP.

Features:
8 Gigabit Passive Optical Network Ports
Supports up to 1024 Clients (128 per PON Port)
Up to 2.488 Gbps TX and 1.244 Gbps RX
Two 1G/10G SFP+ Ethernet Ports
Flexible Layer 2/3 Management Features
FastEthernet port for management
Console serial port for management
UF-OL
Dimensions 442.4 x 285.6 x 43.7 mm
(17.42 x 11.24 x 1.72")
Weight
Without Mount Brackets
With Mount Brackets

4.400 kg (9.70 lb)
4.495 kg (9.91 lb)
Max. Power Consumption 40W (Excluding SFP Transceivers)
Power Method 110 - 240VAC Modular PSU
Power Supply (1) Hot-Swappable AC/DC 100W PSU (Included)
Supported Voltage Range AC Input: 100 to 240VAC
Button Reset
Processor MIPS 1004Kc 880 MHz Dual-Core
System Memory 512 MB DDR3, 512 MB NAND
LEDs
System
PON Data Ports
SFP+ Data Ports
RJ45 (MGMT) Port

Status
Link/Activity
Link/ActivityLink/Activity
Link/Activity
Data Ports Interfaces (8) GPON Ports
(2.488 Gbps TX/1.244 Gbps RX per Port)
(2) 1G/10G SFP+ Ports
Serial Console Port Interfaces (1) RJ45 Ethernet Port
(1) RJ45 Serial Port
Rackmount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
GPON SFP OLT Transceiver
(UF-GP-B+ )
Single Fiber, SM SC/UPC, 20 km,
1490 nm TX/1310 nm RX,
ITU-T G984.2 Class B+
