5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.

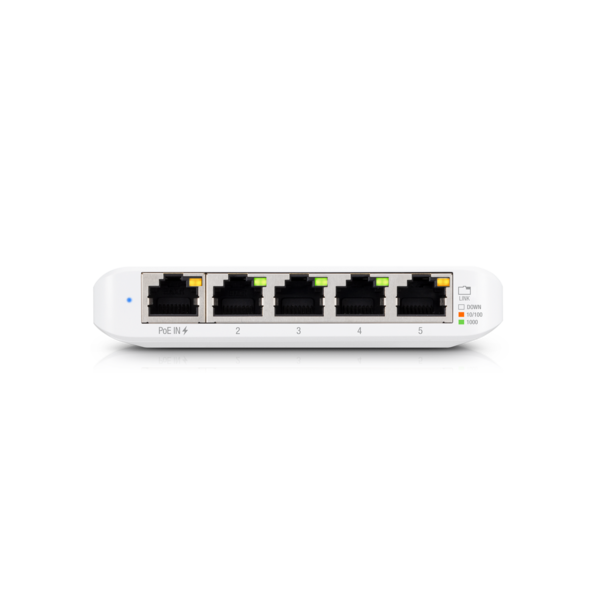

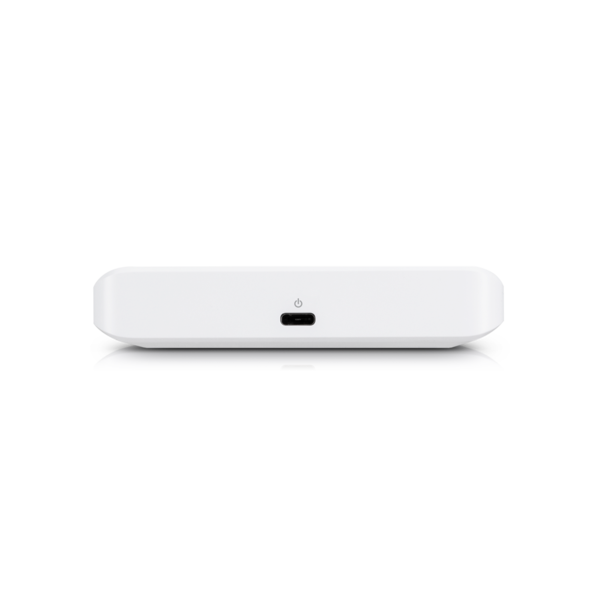

The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

Managed with UniFi Network Application Version: 5.12.5 or higher

5V, 1A USB-C power adapter included only with the single-pack of the USW-Flex-Mini.


Mechanical
Dimensions 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
Weight 150 g (5.29 oz)
Interfaces
Networking
PoE In
Management

(5) 10/100/1000 Mbps RJ45 Ports
802.3af/at PoE (Pins 1, 2+; 3, 6-)
Ethernet In-Band
Total Non-Blocking Throughput 5 Gbps
Switching Capacity 10 Gbps
Forwarding Rate 7.44 Mpps
Power Method USB Type C, 5V
802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
Power Supply 5V, 1A Power Adapter*
Voltage Range
USB Type C
802.3af/at PoE

4.7 - 5.3VDC
44 - 57VDC
Max. Power Consumption 2.5W
LEDs
System
RJ45 Data Ports

Status
Speed/Link/Activity
ESD/EMP Protection ± 16kV Air, ± 12kV Contact
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC

* Included only with the single-pack of the USW-Flex-Mini.
